Wiring hazard warning for BMW R50/5-R90S 69-76 R90S

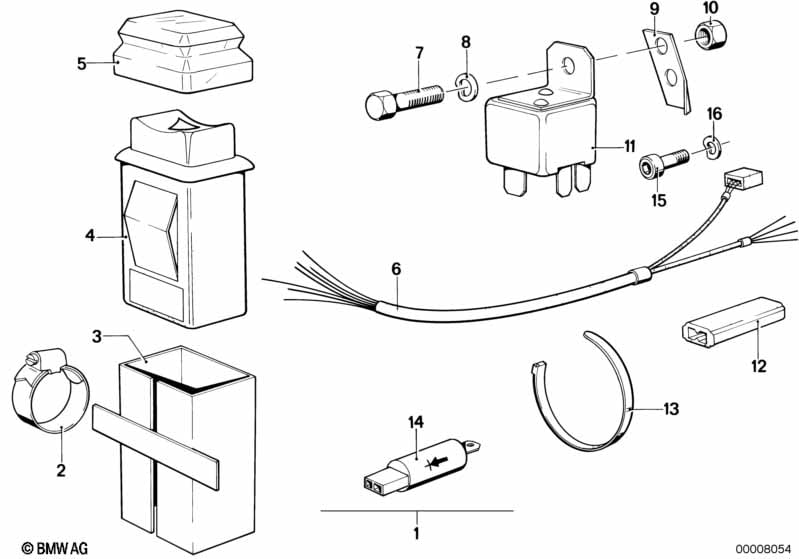

This Wiring hazard warning technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Housing | 1 | 61311236884 | $12.20 | ENDED | Shop at ECS Tuning | ||||
| 04 | Additional switch | 1 | 61311243007 | $101.04 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Protection cap | 1 | 61311233922 | $8.61 | Shop at ECS Tuning | |||||
| 05 | Protection cap | 1 | 61311243644 | $8.22 | Shop at ECS Tuning | |||||
| 06 | Wiring hazard warning | 1 | 61121243071 | $240.89 | Shop at ECS Tuning | |||||
| For vehicles with National version france |
Y741A=Yes |
|||||||||
| 06 | Wiring hazard warning | 1 | 61121243076 | ENDED | Shop at ECS Tuning | |||||
| 07 | Fillister head screw | M5X12-ZN | 1 | 07119906431 | $0.58 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Shackle | 1 | 61131243072 | $6.60 | ENDED | Shop at ECS Tuning | ||||
| 09 | Shackle | 1 | 61131243254 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex nut | M8-8-ZNS3 | 1 | 01/1985 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 10 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 11 | Relay | 1 | 61321358198 | +core | Shop at ECS Tuning | |||||
| For vehicles with National version france |
Y741A=Yes |
|||||||||
| 11 | Mini-relay | 1 | 61311243086 | $28.88 | ENDED, +core | Shop at ECS Tuning | ||||
| 12 | Insulation sleeve | 2 | 61131362373 | Shop at ECS Tuning | ||||||
| 13 | Cable tie | L=292MM/B=4,8MM | 3 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 14 | Diode | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| 15 | Fillister-head screw | M5X8 | 1 | 12312322411 | $0.58 | Shop at ECS Tuning | ||||
| 16 | Wave washer | B5 | 1 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
