Combination switch at handlebar for BMW R50/5-R90S 69-76 R90S

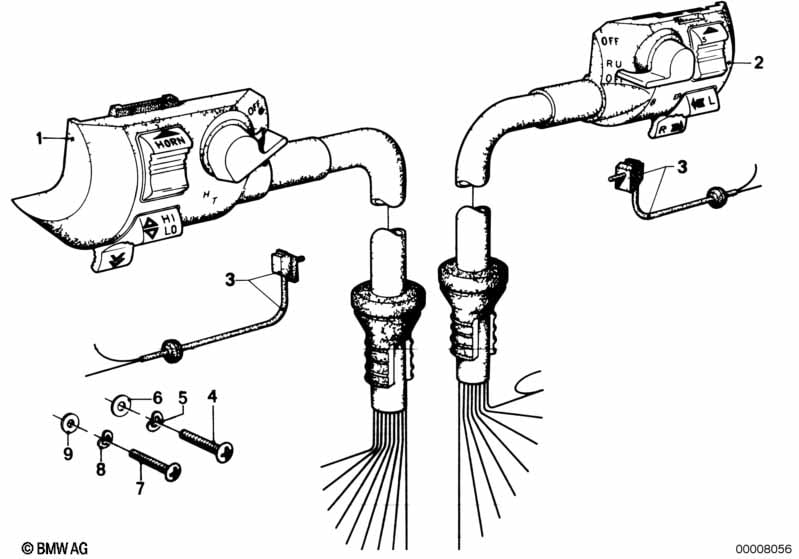

This Combination switch at handlebar technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FG* 09/74 | |||||||||
| with main light switch | ||||||||||
| 01 | Combination switch left | L=230MM | 1 | 61311243247 | $197.36 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Combination switch left | L=380MM | 1 | 61311243248 | $197.36 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Combination switch right | L=230MM | 1 | 61311243245 | $197.36 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Combination switch right | L=380MM | 1 | 61311243246 | $197.36 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Clutch switch | 1 | 61311243403 | $22.46 | +core | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | M4X10-4.8-H | 2 | 07119907616 | $1.07 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B4 | 2 | 07119932100 | $0.56 | ENDED | Shop at ECS Tuning | |||
| 05 | Wave washer | B4 | 2 | 07119932030 | $0.51 | Shop at ECS Tuning | ||||
| 06 | Washer | 9X4,3X0,8-200HV | 2 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 07 | Fillister head screw | M3X10-4.8-H-ZN | 1 | 07119907604 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B3 | 1 | 07119932013 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Washer | A3,2 | 1 | 07119931015 | $0.09 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
