Horn/brake light switch for BMW R50/5-R90S 69-76 R90S

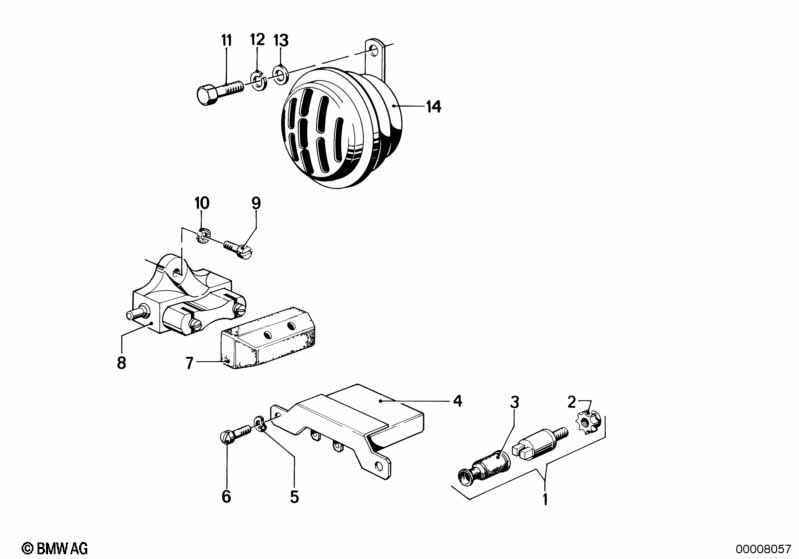

This Horn/brake light switch technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Stop light switch | 2 | 61311351662 | $41.25 | +core | Shop at ECS Tuning | ||||
| 02 | Nut | 2 | 61311351647 | $1.63 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cap | 2 | 61311351646 | $4.90 | Shop at ECS Tuning | |||||
| 07 | Cap | 1 | 61311351249 | $8.61 | Shop at ECS Tuning | |||||
| 08 | Stop light switch | 1 | 61311353684 | $58.32 | +core | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | M4X12 | 2 | 07119919381 | ENDED | Shop at ECS Tuning | ||||
| 10 | Tooth washer | J4,3 | 2 | 07119936042 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Washer | 8,4X18X2MM | 1 | 07149180923 | Shop at ECS Tuning | |||||
| 14 | Horn | 1 | 61331243486 | $60.79 | ENDED, +core | Shop at ECS Tuning |
