Main wiring harness for BMW 7 Series E23 733i (1984)

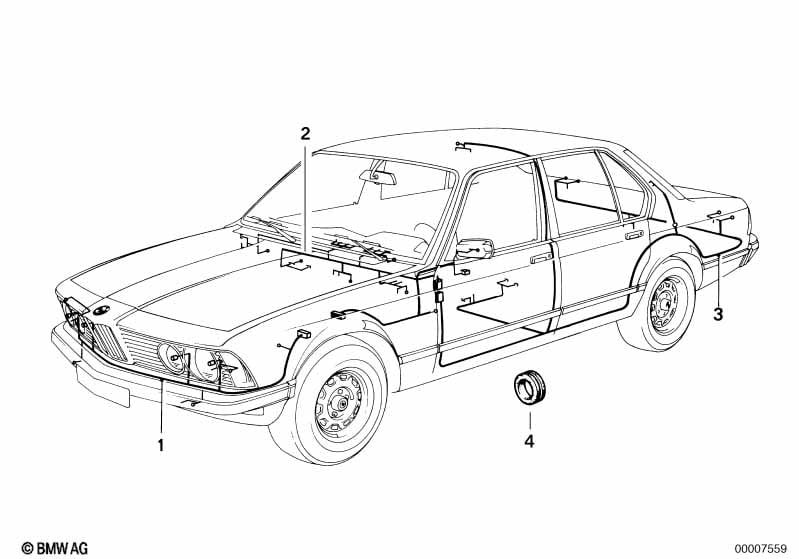

This Main wiring harness technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness, front section | 1 | 04/1983 | 01/1985 | 61113907930 | Shop at ECS Tuning | ||||
| 02 | Cable harness sector ctr. | 1 | 04/1983 | 01/1985 | 61113907934 | Shop at ECS Tuning | ||||
| 03 | Cable harness sector rear | 1 | 04/1983 | 01/1985 | 61113907935 | Shop at ECS Tuning |
