Main wiring harness for BMW 3 Series E21 318 (1977)

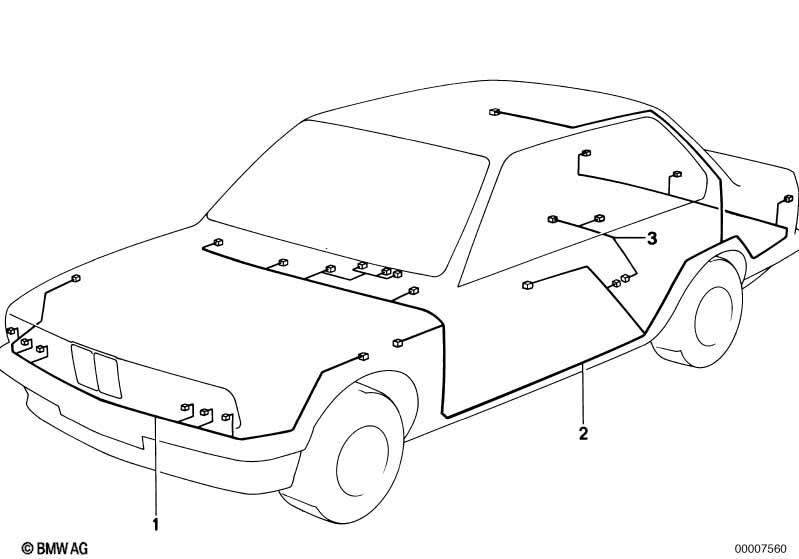

This Main wiring harness technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness, front section | 1 | 08/1979 | 61111359035 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cable harness sector rear | 1 | 08/1977 | 61111356868 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version italy |
L814A=Yes |
|||||||||
| 02 | Cable harness sector rear | 1 | 08/1977 | 61111360744 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 318 Main wiring harness?
- This technical diagram illustrates the Main wiring harness within the Vehicle electrical system group for the 3 Series E21 318 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Wiring harness, front section (Part #61111359035).
- Which models use the hardware listed in this Main wiring harness?
- The hardware and components featured in the Main wiring harness are specific to the 3 Series E21 318 produced during 1977. These technical specifications ensure that parts like the Wiring harness, front section (61111359035) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Main wiring harness assembly?
- Each item in the Main wiring harness corresponds to the numbered list below the illustration. For the 3 Series E21 318, you can identify the Wiring harness, front section by locating its position on the schematic, which then links to the official BMW part number 61111359035 for the Vehicle electrical system section.
