Main wiring harness for BMW 5 Series E28 528e (1987)

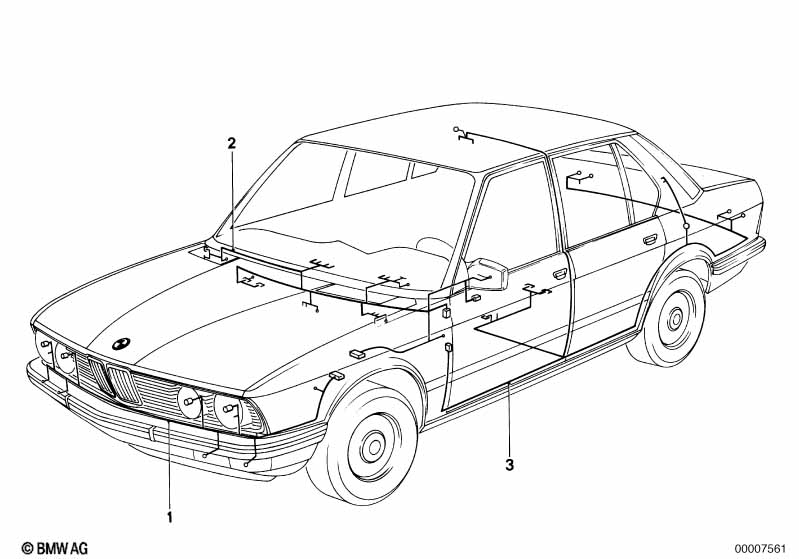

This Main wiring harness technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring harness, front section | 1 | 09/1985 | 61111380253 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cable harness sector ctr. | 1 | 09/1985 | 61111380210 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cable harness sector rear | 1 | 09/1985 | 61111380212 | $597.06 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
