Cable harness for BMW 3 Series E30 325i (1992)

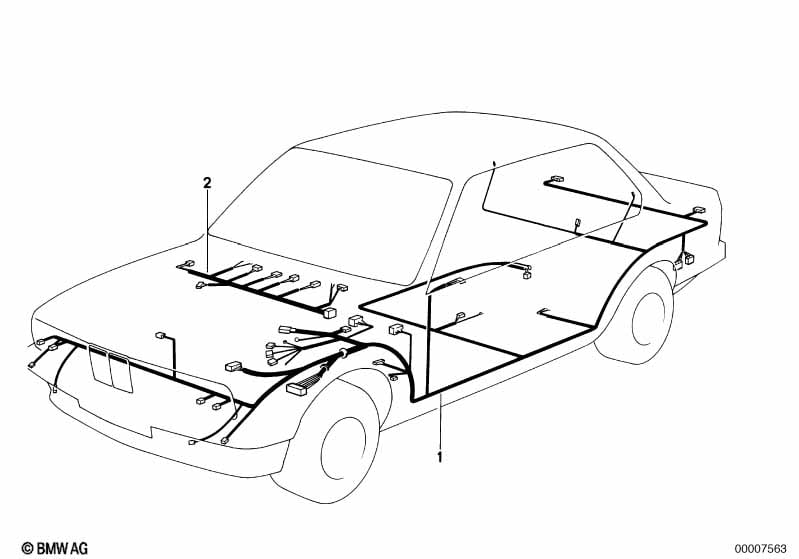

This Cable harness technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable harness | 1 | 09/1990 | 61111394302 | $1333.62 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable harness sector dashboard | 1 | 09/1987 | 61111385572 | $168.08 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Norway version |
=Yes |
|||||||||
| 02 | Cable harness sector dashboard | 1 | 09/1987 | 61111385574 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland and Sweden version |
L804A=Yes =Yes |
|||||||||
| 02 | Cable harness sector dashboard | 1 | 09/1989 | 61111394183 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
