Wiring adjustable front seat for BMW 5 Series E28 M535i (1987)

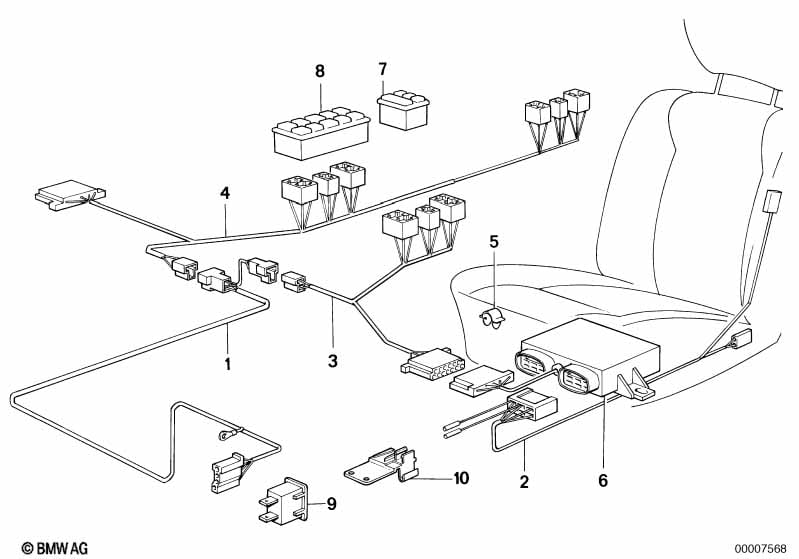

This Wiring adjustable front seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ELECT.ADJUST.SEAT FRONT | |||||||||
| 01 | Wiring drivers side | 1 | 09/1984 | 61121377184 | $96.81 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Memory |
=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 09/1984 | 61121377183 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring adjustible backrest and headrest | 1 | 61121369917 | $28.24 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 02 | Wiring adjustible backrest and headrest | 1 | 61121373108 | $87.61 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wiring co-drivers side | 1 | 09/1984 | 61121377185 | $60.82 | ENDED | Shop at ECS Tuning | |||
| 05 | Cable holder | D=16,8MM | 2 | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Control unit | 1 | 61311369678 | $470.60 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Memory |
=Yes |
|||||||||
| 06 | Control unit | 1 | 61311371916 | $1158.23 | ENDED | Shop at ECS Tuning | ||||
| 07 | Switch | 1 | 61311370097 | $235.48 | ENDED | Shop at ECS Tuning | ||||
| 08 | Switch combination adjustable seat | 2 | 61311375153 | $160.82 | ENDED | Shop at ECS Tuning | ||||
