Wiring set adjustable sportseat for BMW 5 Series E28 520i (1987)

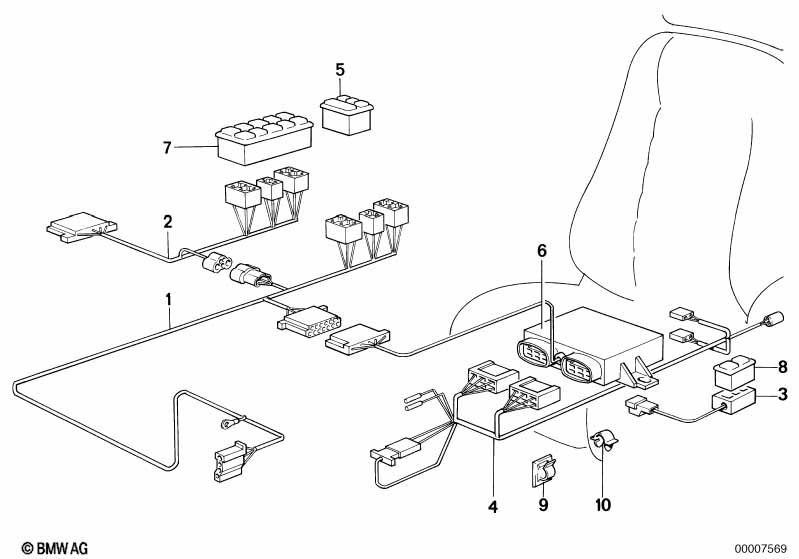

This Wiring set adjustable sportseat technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO BMW SPORTS SEAT EL.ADJU. | |||||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 61121377597 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Memory |
L807A=Yes =Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 01/1986 | 61121380707 | $160.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Wiring co-drivers side | 1 | 01/1986 | 61121377598 | $135.04 | ENDED | Shop at ECS Tuning | |||
| 03 | Wiring adjustible pad | 1 | 01/1986 | 61121377118 | $42.14 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiring adjustible backrest and headrest | 1 | 01/1986 | 61121377171 | $42.14 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Memory |
L807A=Yes =Yes |
|||||||||
| 04 | Wiring adjustible backrest and headrest | 1 | 01/1986 | 61121377128 | $87.61 | ENDED | Shop at ECS Tuning | |||
| 05 | Switch | 1 | 01/1986 | 61311370097 | $235.48 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | Control unit | 1 | 01/1986 | 61311369678 | $470.60 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Memory |
L807A=Yes =Yes |
|||||||||
| 06 | Control unit | 1 | 01/1986 | 61311371916 | $1158.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 07 | Switch combination adjustable seat | 1 | 01/1986 | 61311375153 | $160.82 | ENDED | Shop at ECS Tuning | |||
| 08 | Switch | 1 | 01/1986 | 61311367373 | $41.36 | Shop at ECS Tuning | ||||
| 08 | Switch illuminated | 1 | 01/1986 | 61311377905 | $55.66 | Shop at ECS Tuning | ||||
| 09 | Tubing support | 1 | 01/1986 | 61131361243 | $1.77 | Shop at ECS Tuning | ||||
| 10 | Cable holder | D=16,8MM | 1 | 01/1986 | 12521276147 | $0.58 | Shop at ECS Tuning | |||
