Wiring connections-plug terminal for BMW 6 Series E24 M6 (1988)

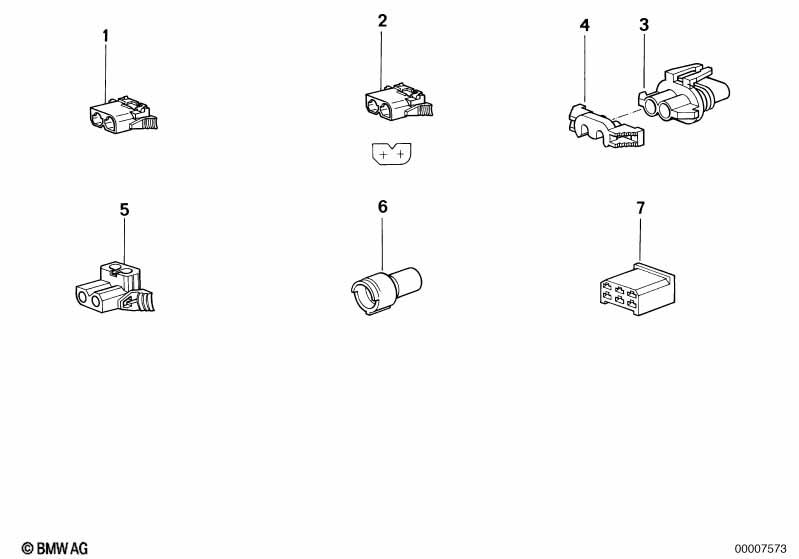

This Wiring connections-plug terminal technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plug housing | NATUR | 2 | 06/1987 | 61131378401 | $1.40 | Shop at ECS Tuning | |||
| 01 | Plug housing | GELB | 2 | 06/1987 | 61131378403 | $1.48 | Shop at ECS Tuning | |||
| 02 | Plug housing | 2 POL. / GRAU | 2 | 06/1987 | 61131378402 | $0.98 | Shop at ECS Tuning | |||
| 03 | Plug terminal black | 2 POL. | 2 | 06/1987 | 61138364494 | $1.82 | Shop at ECS Tuning | |||
| 03 | Socket housing, grey | 2 POL. | 2 | 06/1987 | 61138364498 | $2.33 | Shop at ECS Tuning | |||
| 04 | Socket housing, grey | 2 POL. | 2 | 06/1987 | 61138364498 | $2.33 | Shop at ECS Tuning | |||
| 05 | Plug terminal black | 2 | 06/1987 | 61131378416 | $1.15 | Shop at ECS Tuning | ||||
| 06 | Plug terminal flasher | 2 | 06/1987 | 61131372419 | $2.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Plug terminal for tail light | 2 | 06/1987 | 61131361247 | $1.41 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 M6 Wiring connections-plug terminal?
- This technical diagram illustrates the Wiring connections-plug terminal within the Vehicle electrical system group for the 6 Series E24 M6 produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Plug housing (Part #61131378401).
- Which models use the hardware listed in this Wiring connections-plug terminal?
- The hardware and components featured in the Wiring connections-plug terminal are specific to the 6 Series E24 M6 produced during 1988. These technical specifications ensure that parts like the Plug housing (61131378401) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wiring connections-plug terminal assembly?
- Each item in the Wiring connections-plug terminal corresponds to the numbered list below the illustration. For the 6 Series E24 M6, you can identify the Plug housing by locating its position on the schematic, which then links to the official BMW part number 61131378401 for the Vehicle electrical system section.
