Door cable harnesses for BMW 7 Series E32 730iL (1988)

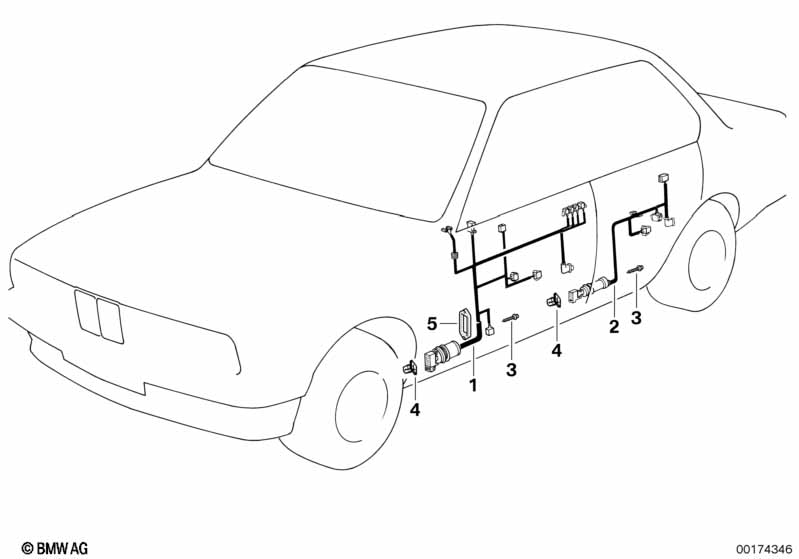

This Door cable harnesses technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring drivers side | 1 | 61121378833 | $194.22 | ENDED | Shop at ECS Tuning | ||||
| 01 | Wiring co-drivers side | 1 | 61121378834 | $179.68 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with DWA-Alarm System |
=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 61121388316 | $355.08 | ENDED | Shop at ECS Tuning | ||||
| 01 | Wiring co-drivers side | 1 | 61121388317 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Mirror memory |
=Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 61121379478 | $358.20 | ENDED | Shop at ECS Tuning | ||||
| 01 | Wiring co-drivers side | 1 | 61121379479 | $247.35 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with DWA-Alarm System and Mirror memory |
=Yes =Yes |
|||||||||
| 01 | Wiring drivers side | 1 | 61121388318 | $358.20 | ENDED | Shop at ECS Tuning | ||||
| 01 | Wiring co-drivers side | 1 | 61121388319 | $179.68 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring rear left | 1 | 01/1992 | 61121382631 | $174.10 | ENDED | Shop at ECS Tuning | |||
| For vehicles with DWA-Alarm System |
=Yes |
|||||||||
| 02 | Wiring rear right | 1 | 01/1992 | 61121388308 | $216.50 | ENDED | Shop at ECS Tuning | |||
| 02 | Wiring rear left | 1 | 01/1992 | 61121388309 | $174.10 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex head screw | ST4,2X22-ZNT SW | 8 | 07149145030 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Prestol-cage | ST4,2 | 8 | 07129901744 | Shop at ECS Tuning | |||||
| 05 | Holder | 4 | 61131378003 | $2.96 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
