Wiring harness levelling device for BMW 7 Series E23 733i (1982)

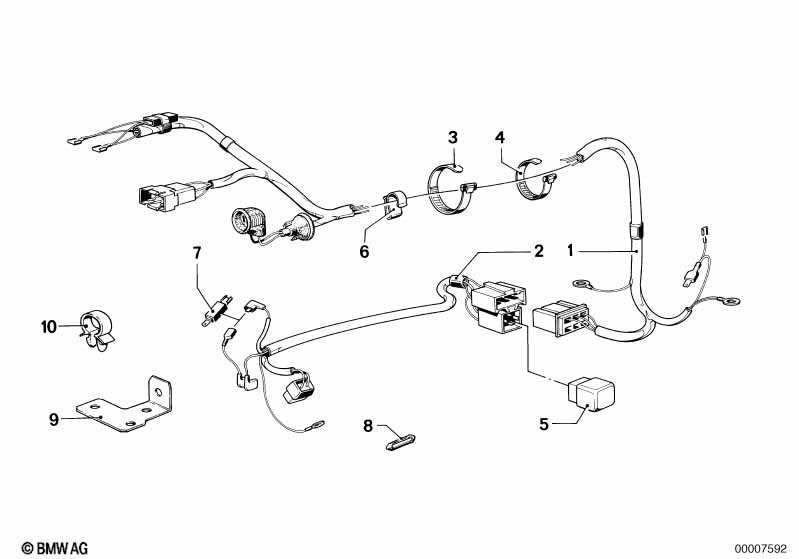

This Wiring harness levelling device technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 02 | Wiring set | 1 | 61121364342 | $54.96 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Relay | 1 | 61311154784 | ENDED | Shop at ECS Tuning | |||||
| 06 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 07 | Diode | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| 08 | Fuse | 25A | 1 | 61138760139 | $1.83 | ENDED | Shop at ECS Tuning | |||
| 10 | Cable holder | D=16,8MM | 2 | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
