Wiring ABS for BMW 7 Series E23 728i (1982)

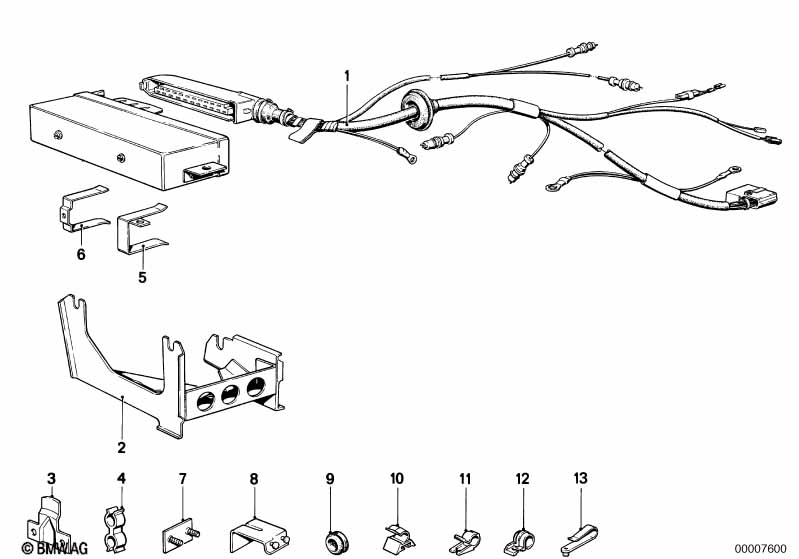

This Wiring ABS technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 01 | Wiring set | 1 | 09/1982 | 09/1984 | 61111372877 | ENDED | Shop at ECS Tuning | |||
| 02 | Holder | 1 | 41111874665 | $23.72 | ENDED | Shop at ECS Tuning | ||||
| 03 | Holder | 2 | 41131874662 | $2.06 | ENDED | Shop at ECS Tuning | ||||
| 04 | Holder | 1 | 61131365675 | $1.13 | Shop at ECS Tuning | |||||
| 07 | Holder | 1 | 61131363004 | ENDED | Shop at ECS Tuning | |||||
| 08 | Holder | 1 | 61131363012 | $1.67 | ENDED | Shop at ECS Tuning | ||||
| 09 | Rubber grommet | 2 | 34321118503 | ENDED | Shop at ECS Tuning | |||||
| 10 | Cable holder | 4 | 61131369469 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cable clamp | D=6MM | 2 | 63121364431 | $0.93 | Shop at ECS Tuning | ||||
| 12 | Clamp | 12-16MM | 3 | 21521119300 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 13 | Cable holder | 6 | 61131367105 | $3.32 | ENDED | Shop at ECS Tuning | ||||
