Wiring sets for BMW 5 Series E12 525 (1981)

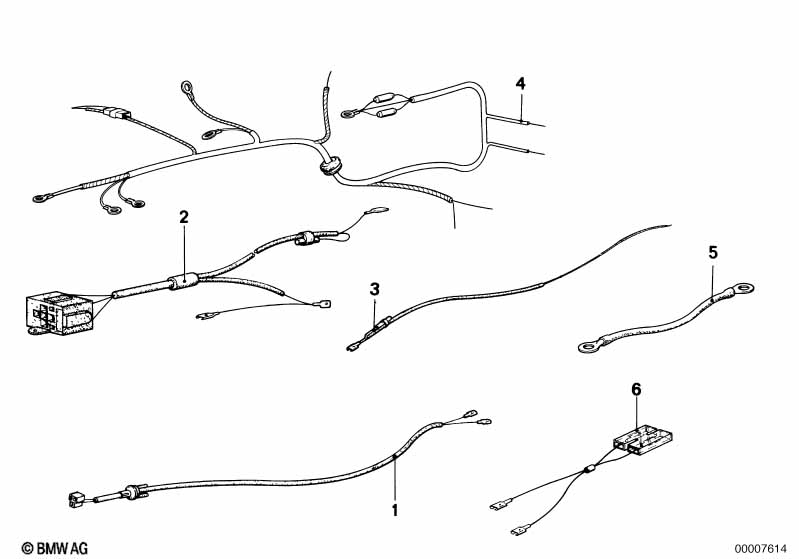

This Wiring sets technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable backup lamp switch | 1 | 61121356188 | $8.75 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 02 | Wiring rear fog light | 1 | 01/1980 | 61121369457 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wiring reading lamp | 1 | 61121356368 | ENDED | Shop at ECS Tuning | |||||
| only applies to authorities ADDITIONAL BATTERY |
||||||||||
| 04 | Wiring harness with horn scale | 1 | 61111359590 | ENDED | Shop at ECS Tuning | |||||
| 04 | Wiring harness without horn scale | 1 | 61111359720 | ENDED | Shop at ECS Tuning | |||||
| 05 | Wire disconectionrelay-alternater | 1 | 61111359597 | ENDED | Shop at ECS Tuning | |||||
| 06 | Wire signal horn | 1 | 61121363794 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
