Wiring sets for BMW 7 Series E32 740i (1994)

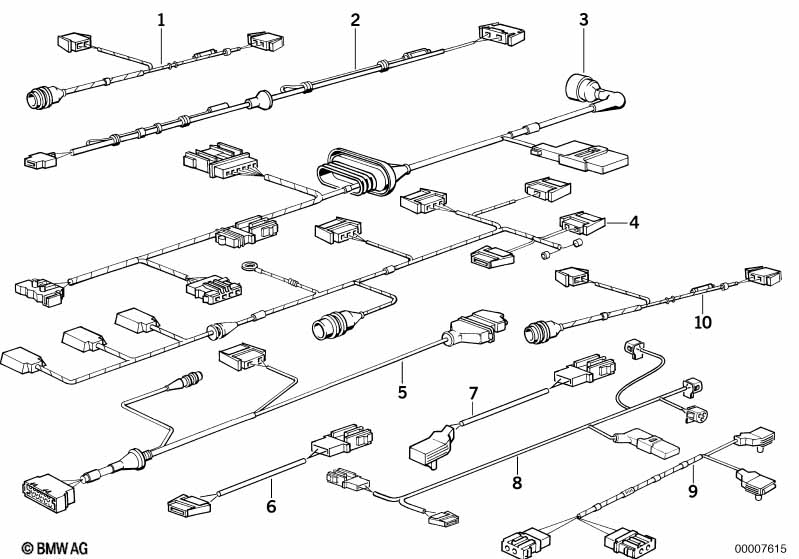

This Wiring sets technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set fog lights | 1 | 61121378846 | $107.69 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring ashtray/door entrance lamp | 2 | 01/1992 | 61128356152 | $37.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Wiring set cruise control | 1 | 61121378312 | $167.52 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wiring speedomet.,sending unit,pump | 1 | 61128365445 | $175.07 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Electronic Damper Control (EDC) |
=Yes |
|||||||||
| 05 | Wiring speedomet.,sending unit,pump | 1 | 61128365446 | ENDED | Shop at ECS Tuning | |||||
| 06 | Wiring airbag gas alternator/resistance | 1 | 09/1991 | 61128357035 | $60.82 | ENDED | Shop at ECS Tuning | |||
| 06 | Wiring S.R.S.gas cartridge | 1 | 09/1992 | 61128356003 | $59.03 | ENDED | Shop at ECS Tuning | |||
| 07 | Wiring sup.restraint sys./belt tensioner | 1 | 61121379447 | $49.10 | Shop at ECS Tuning | |||||
| 07 | Wiring S.R.S.gas cartridge | 1 | 09/1992 | 61128356003 | $59.03 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag for front passenger |
=Yes |
|||||||||
| 09 | Wiring,airbag electronics for passenger | 1 | 61121379037 | $142.23 | ENDED | Shop at ECS Tuning | ||||
| 09 | Wiring, driver's and passenger's airbag | 1 | 09/1991 | 61128356060 | $64.00 | Shop at ECS Tuning | ||||
| 10 | Adapter lead ASC | 1 | 61118350619 | $55.80 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
