Wiring sets for BMW 7 Series E23 733i (1979)

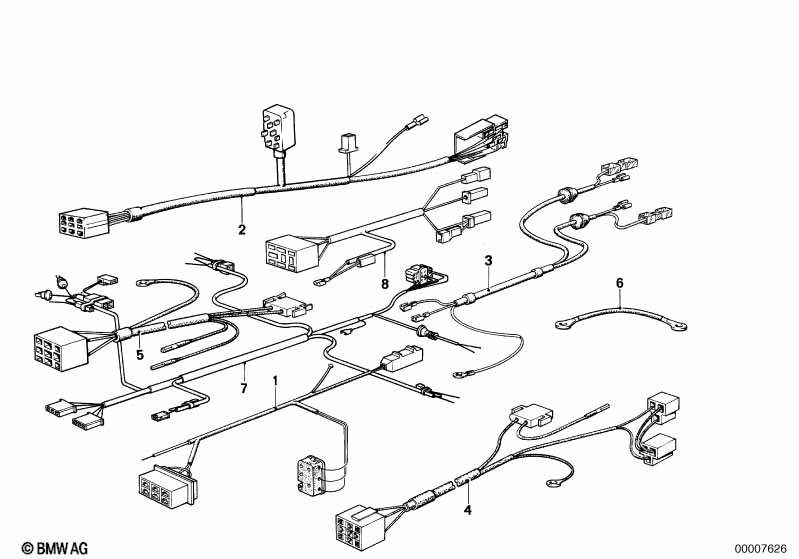

This Wiring sets technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable negative | 1 | 12422902420 | Shop at ECS Tuning | ||||||
| 02 | Battery cable (plus pole) | 1 | 61123905918 | Shop at ECS Tuning | ||||||
| 03 | Wiring automatic transmission | 3HP22 | 1 | 01/1982 | 61121364904 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiring engine room lamp | 1 | 04/1983 | 61121363294 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cable trunk light | 1 | 04/1983 | 61121363295 | $13.50 | ENDED | Shop at ECS Tuning | |||
| 07 | Cable heated rear window negative | 1 | 61121363321 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cable electr.petrol pump | 1 | 61131363328 | $20.20 | ENDED | Shop at ECS Tuning | ||||
| 09 | Wiring cigar lighter rear | 1 | 61121365280 | ENDED | Shop at ECS Tuning | |||||
| 10 | Wiring adjustable rear seat | 1 | 61121364777 | $55.52 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
