Wiring sets for BMW 7 Series E23 733i (1981)

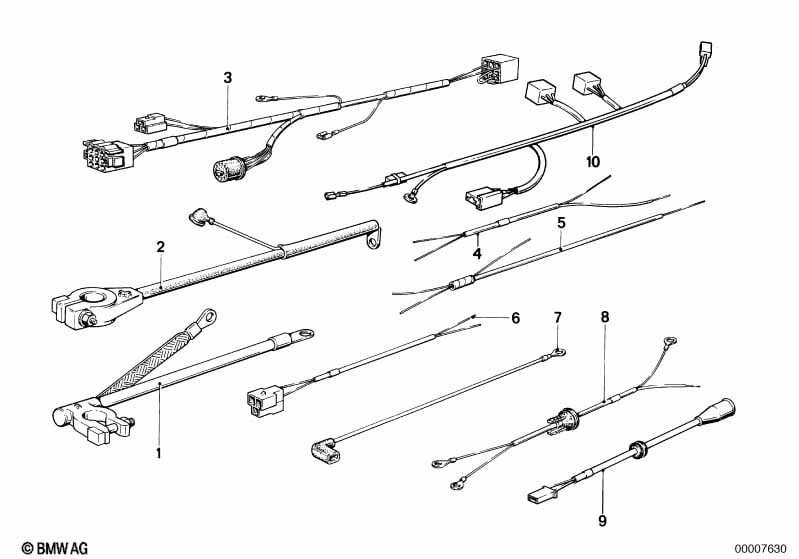

This Wiring sets technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable negative | L=160MM | 1 | 09/1982 | 12421277584 | $14.62 | ENDED | Shop at ECS Tuning | ||
| 02 | Battery cable (plus pole) | L=760MM | 1 | 12421277516 | $26.61 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiring engine room lamp | 1 | 09/1982 | 61121363294 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cable trunk light | 1 | 09/1980 | 09/1982 | 61121369282 | ENDED | Shop at ECS Tuning | |||
| 05 | Cable trunk light | 1 | 09/1980 | 09/1982 | 61121369282 | ENDED | Shop at ECS Tuning | |||
| 06 | Cable backup lamp switch | 1 | 61121363297 | $10.71 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cable heated rear window negative | 1 | 61121363321 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cable marker light | 2 | 09/1981 | 61121370149 | $21.29 | ENDED | Shop at ECS Tuning | |||
| 09 | Cable marker light | 2 | 09/1981 | 61121370149 | $21.29 | ENDED | Shop at ECS Tuning |
