Various additional wiring sets for BMW 6 Series E24 633CSi (1984)

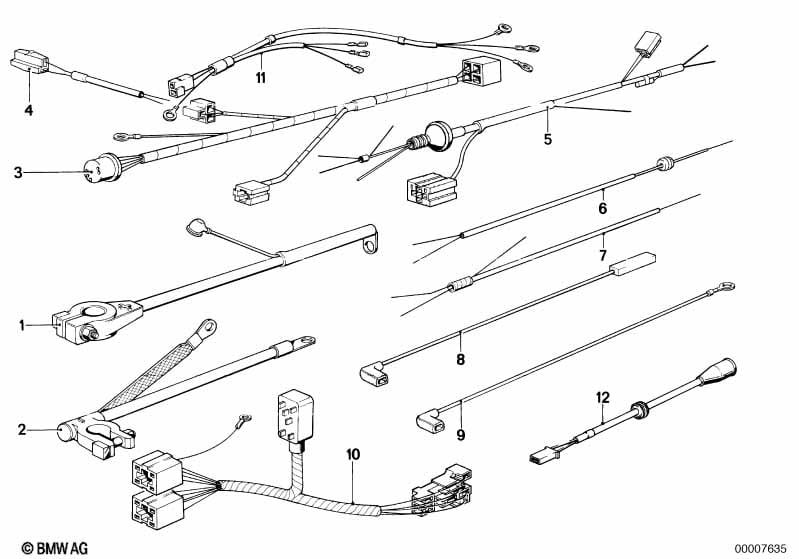

This Various additional wiring sets technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable (plus pole) | L=760MM | 1 | 12421277516 | $26.61 | ENDED | Shop at ECS Tuning | |||
| 02 | Battery cable negative | L=790MM | 1 | 12421286746 | $19.48 | Shop at ECS Tuning | ||||
| 03 | Wiring automatic transmission | 3HP22 | 1 | 12/1998 | 61121361474 | $118.34 | ENDED | Shop at ECS Tuning | ||
| 03 | Wiring automatic transmission | 1 | 09/1983 | 61121373329 | $56.08 | ENDED | Shop at ECS Tuning | |||
| 05 | Wiring set additional fan | 1 | 61121361961 | ENDED | Shop at ECS Tuning | |||||
| 06 | Wiring engine room lamp/spraying nozzle | 1 | 05/1983 | 61131373874 | $41.81 | ENDED | Shop at ECS Tuning | |||
| 07 | Cable trunk light | 1 | 09/1982 | 65751371736 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cable heated rear window positive | 1 | 61121355637 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cable heated rear window negative | 1 | 61121355636 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| 10 | Wiring speed warning | 1 | 09/1978 | 61121366602 | ENDED | Shop at ECS Tuning | ||||
| 11 | Wiring interior light center | 1 | 61121364087 | $21.99 | ENDED | Shop at ECS Tuning |
