Various additional wiring sets for BMW 3 Series E30 325e (1987)

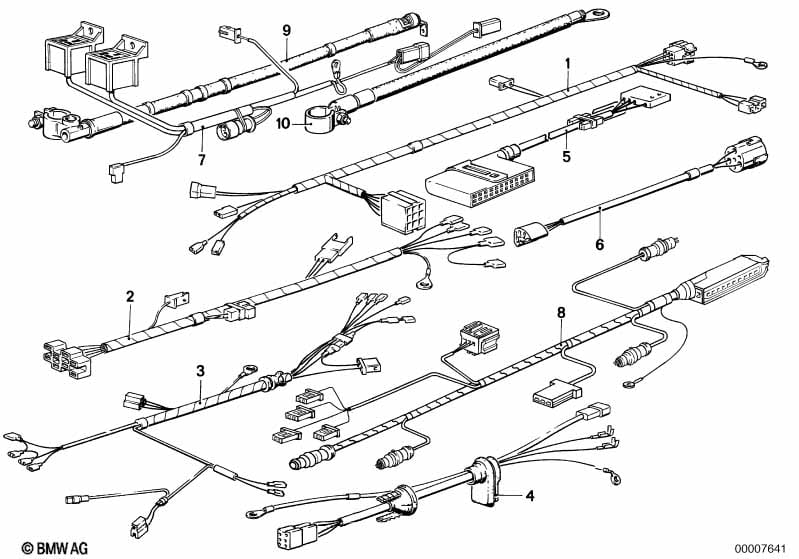

This Various additional wiring sets technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 02 | Wiring set electr.sliding lifting roof | 1 | 09/1986 | 61121381098 | $44.89 | ENDED | Shop at ECS Tuning | |||
| 04 | Wiring wiper motor | 1 | 61121376063 | $49.90 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wiring blower | 1 | 61131371344 | $9.03 | ENDED | Shop at ECS Tuning | ||||
| 09 | Battery cable (plus pole) | L=890MM / 25QMM | 1 | 12421711258 | $50.05 | Shop at ECS Tuning | ||||
| 10 | Battery cable negative | L=170MM | 1 | 12421719664 | $35.05 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Various additional wiring sets?
- This technical diagram illustrates the Various additional wiring sets within the Vehicle electrical system group for the 3 Series E30 325e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Wiring set electr.sliding lifting roof (Part #61121381098).
- Which models use the hardware listed in this Various additional wiring sets?
- The hardware and components featured in the Various additional wiring sets are specific to the 3 Series E30 325e produced during 1987. These technical specifications ensure that parts like the Wiring set electr.sliding lifting roof (61121381098) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various additional wiring sets assembly?
- Each item in the Various additional wiring sets corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Wiring set electr.sliding lifting roof by locating its position on the schematic, which then links to the official BMW part number 61121381098 for the Vehicle electrical system section.
