Wiring sets for BMW 5 Series E28 528i (1987)

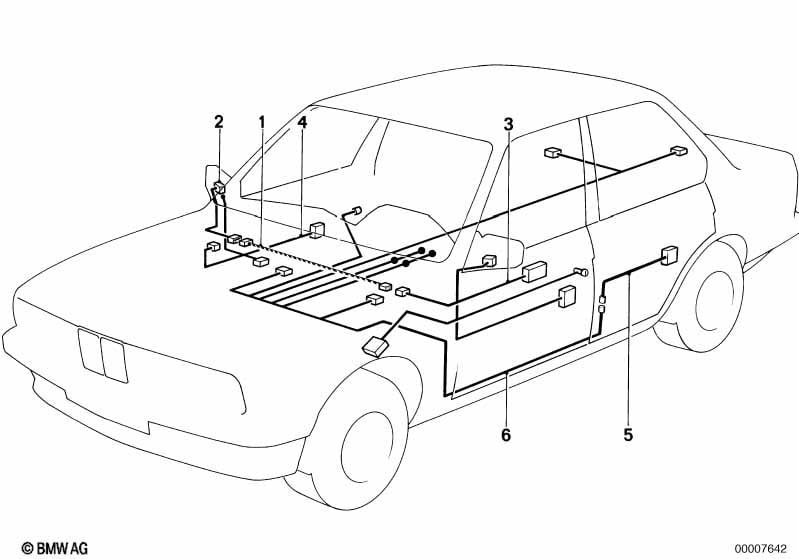

This Wiring sets technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring connection to additional mirror | 1 | 61121373139 | $20.20 | Shop at ECS Tuning | |||||
| 02 | Wiring electr.ext.mirror co-driver side | 1 | 61121376292 | $20.20 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with 2 exterior mirror and Control unit for interior light and Door lock heating |
=Yes =Yes =Yes |
|||||||||
| 03 | Wiring drivers side | 1 | 09/1983 | 61121376294 | $172.92 | ENDED | Shop at ECS Tuning | |||
| For vehicles with 2 exterior mirror and Control unit for interior light and Door lock heating and Electr. window lifter and Central locking system and Alarm systems |
=Yes =Yes =Yes =Yes =Yes =Yes |
|||||||||
| 03 | Wiring drivers side | 1 | 09/1984 | 61121380629 | $160.70 | ENDED | Shop at ECS Tuning | |||
| For vehicles with 2 exterior mirror and Central locking system and Electr. window lifter |
=Yes =Yes =Yes |
|||||||||
| 04 | Wiring co-drivers side | 1 | 09/1983 | 61121380229 | $99.60 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Electr. window lifter and Central locking system |
=Yes =Yes |
|||||||||
| 05 | Wiring rear | 2 | 09/1983 | 61121376299 | $37.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Electr. window lifter |
=Yes |
|||||||||
| 06 | Current supply wiring set | 1 | 09/1983 | 61121375291 | $145.08 | Shop at ECS Tuning | ||||
| For vehicles with Electr. window lifter and Central locking system |
=Yes =Yes |
|||||||||
| 06 | Current supply wiring set | 1 | 01/1985 | 61121376302 | $283.33 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
