Wiring sets for BMW 3 Series E30 320i (1990)

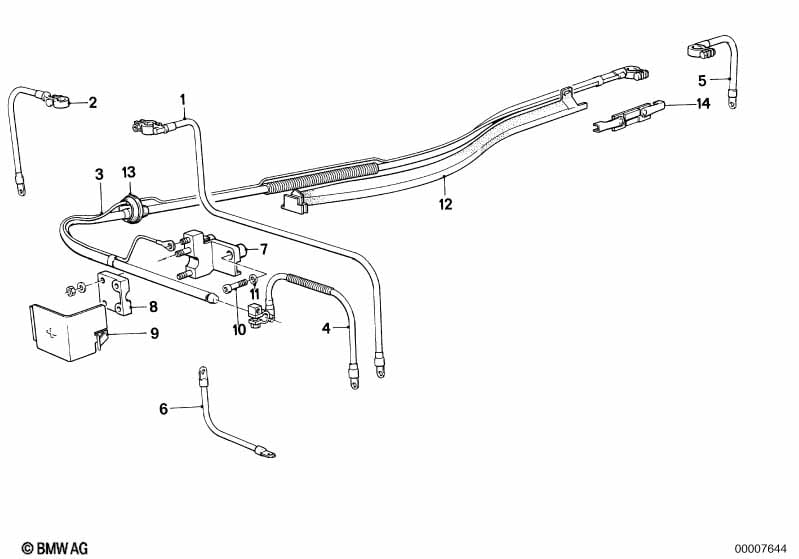

This Wiring sets technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Battery cable (plus pole) | L=3475MM | 1 | 12421375601 | $101.22 | Shop at ECS Tuning | ||||
| 04 | Battery cable (plus pole) | L=890MM / 25QMM | 1 | 12421711258 | $50.05 | Shop at ECS Tuning | ||||
| 06 | Ground cable | 235MM | 1 | 12511714039 | $19.50 | Shop at ECS Tuning | ||||
| 07 | Battery cable holder | 1 | 12421288410 | $6.04 | Shop at ECS Tuning | |||||
| 08 | Battery cable holder | 1 | 12422450403 | Shop at ECS Tuning | ||||||
| 09 | Cover f battery cable holder | 1 | 12421288413 | $2.10 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 10 | ISA screw | M6X16-8.8-ZNNIV | 2 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 12 | Covering f battery cable | 1 | 12421374957 | $8.82 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cable grommet | 1 | 61131374974 | $2.80 | ENDED | Shop at ECS Tuning | ||||
| 14 | Fuse | 50A | 1 | 12411706111 | $9.55 | Shop at ECS Tuning | ||||
