Wiring sets for BMW 5 Series E28 535i (1987)

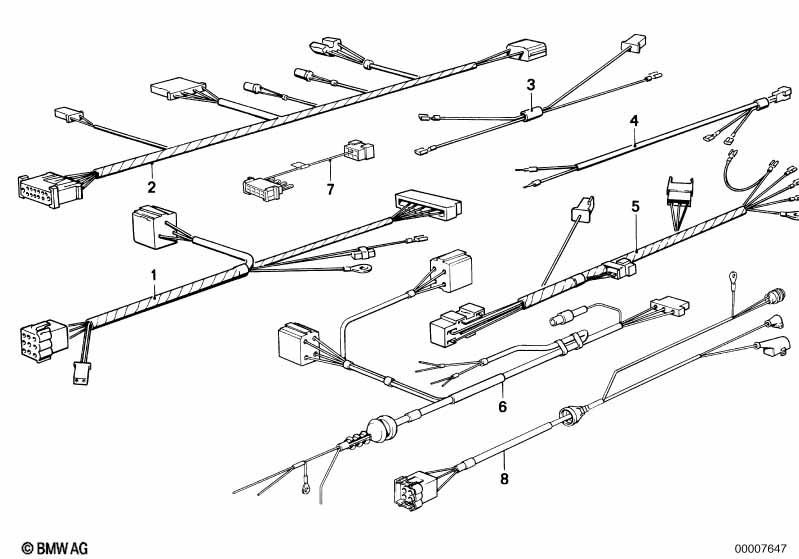

This Wiring sets technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring automatic transmission | 4HP22 | 1 | 61121376370 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring heater control | 1 | 09/1983 | 61121375289 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Wiring heater control | 1 | 09/1983 | 61121380467 | $161.87 | ENDED | Shop at ECS Tuning | |||
| 03 | Cable trunk light | 1 | 61121369359 | $6.70 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wiring interior light lateral | 1 | 61121369296 | $18.97 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wiring set electr.sliding lifting roof | 1 | 61121369295 | $40.73 | ENDED | Shop at ECS Tuning | ||||
| 06 | Wiring set additional fan | 1 | 09/1984 | 61121380221 | $127.06 | ENDED | Shop at ECS Tuning | |||
| 08 | Wiring speedomet.,sending unit,pump,wear | 1 | 09/1985 | 61121380218 | $127.06 | ENDED | Shop at ECS Tuning | |||
