Various additional wiring sets for BMW 3 Series E30 M3 (1990)

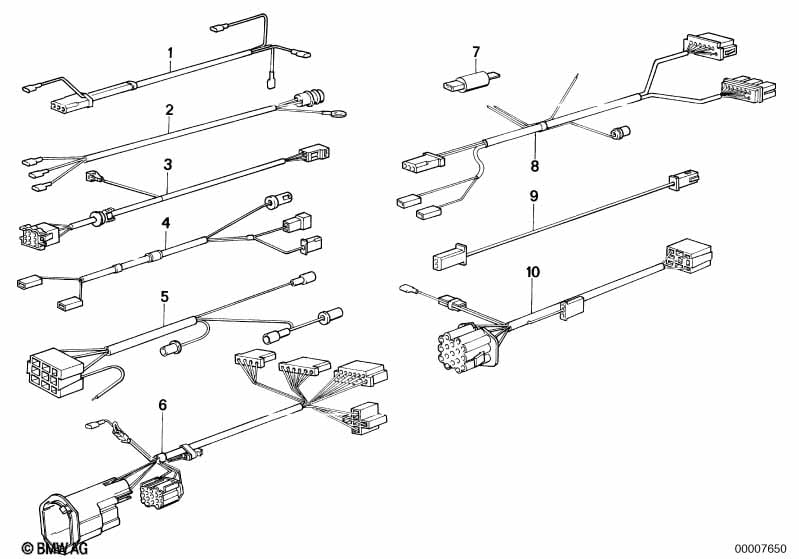

This Various additional wiring sets technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Wiring interior light/door contact | 1 | 61121373554 | $15.38 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiring brake wear warning indicator | 1 | 61121367674 | $57.44 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Electr. window lifter |
L807A=Yes =Yes |
|||||||||
| 04 | Wiring circuit breaker | 1 | 61121370980 | $16.94 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wiring comfort connection | 1 | 09/1987 | 61121385851 | $31.71 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | Replacement cable body codriver side | 1 | 61121375793 | $50.98 | ENDED | Shop at ECS Tuning | ||||
| 06 | Replacement cable body driver side | 1 | 61121376824 | $96.39 | ENDED | Shop at ECS Tuning | ||||
| 07 | Diode | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan ONLY APPLIES TO WIRING HEATER CONTROL |
L807A=Yes |
|||||||||
| 08 | Diode | 1 | 61311371957 | $15.20 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 09 | Wiring S.R.S.gas cartridge | 1 | 61121377878 | $26.80 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
