Cable clamps/cable ties for BMW 6 Series E24 633CSi (1979)

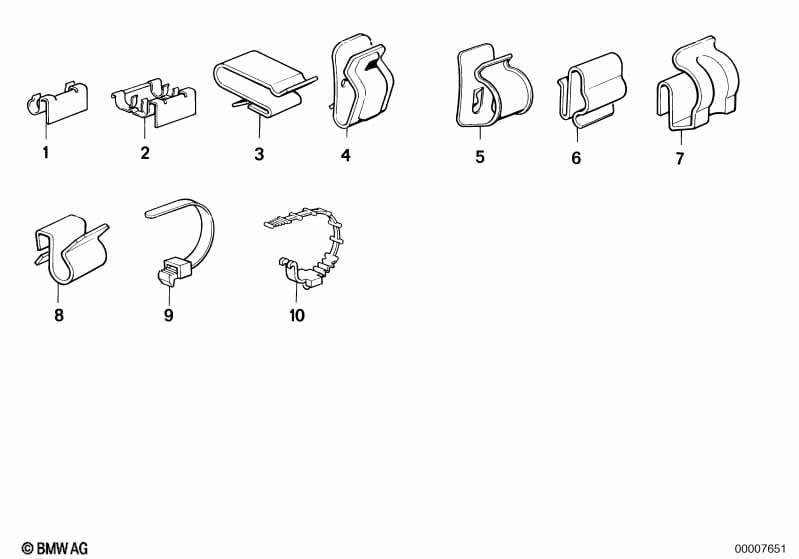

This Cable clamps/cable ties technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable clamp | D=10-12MM | X | 63171372006 | $2.42 | Shop at ECS Tuning | ||||
| 02 | Cable clamp | D=10MM | X | 61131371035 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cable clamp | D=4,5MM | X | 61131353865 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Cable clamp | D=10-12MM | X | 61131361897 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 05 | Cable clamp | D=7MM | X | 61131353804 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 05 | Cable clamp | D=12MM | X | 61131355345 | $0.82 | ENDED | Shop at ECS Tuning | |||
| 06 | Cable clamp | D=5MM | X | 61131353126 | $0.42 | Shop at ECS Tuning | ||||
| 07 | Clamp | X | 07147202015 | Shop at ECS Tuning | ||||||
| 07 | Cable clamp | D=9/B=4 | X | 61131351045 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Cable clamp | D=14/B=1,5 | X | 54101804049 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cable clamp | D=10MM | X | 61131354601 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Cable clamp | D=8/B=1,5 | X | 61131354726 | $0.42 | Shop at ECS Tuning | ||||
| 09 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 10 | Cable tie | X | 61131391721 | $1.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
