Plug housing for BMW 5 Series E12 528i (1981)

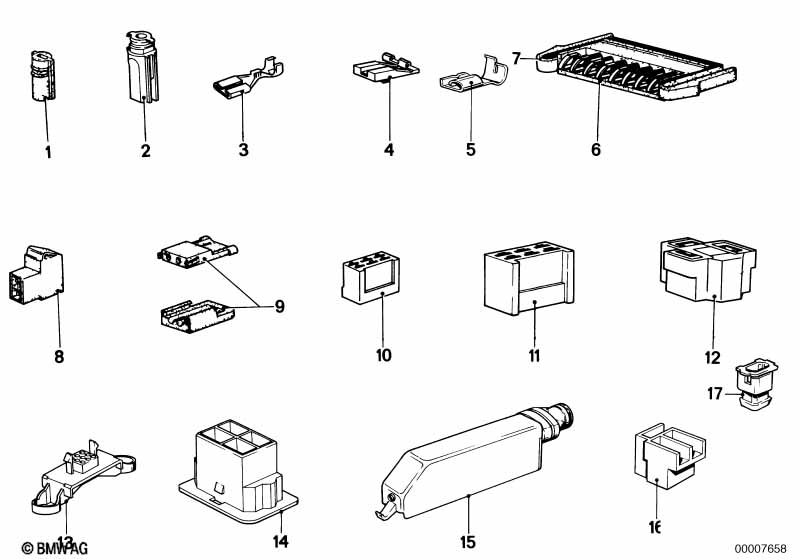

This Plug housing technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bulb socket | 2 | 61131355640 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bulb socket | 2 | 61131355558 | $1.23 | Shop at ECS Tuning | |||||
| 03 | Cable socket female | B=8/L=20 | X | 61138608021 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 04 | Cable socket female | B=9,1/L=16,8 | X | 61131352577 | $0.95 | Shop at ECS Tuning | ||||
| 05 | Cable socket female | 0,5-1,0MM² | 3 | 61131368534 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 06 | Contact socket | B=2,2 | X | 61131355488 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 07 | Plug housing | 2 | 61131355487 | ENDED | Shop at ECS Tuning | |||||
| 08 | Plug terminal for hand lamp | 1 | 61131355486 | $1.05 | ENDED | Shop at ECS Tuning | ||||
| 11 | Plug terminal for tail light | 2 | 08/1976 | 61131358725 | $1.38 | Shop at ECS Tuning | ||||
| 12 | Plug | 6 | 61131352357 | ENDED | Shop at ECS Tuning | |||||
| 13 | Plug terminal for engine diagnosis | 1 | 61131355289 | $2.90 | ENDED | Shop at ECS Tuning | ||||
| 14 | Plug terminal heater fan | 1 | 64111355785 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 15 | Plug terminal control unit fuel inject. | 35POL | 1 | 61131358348 | $24.55 | ENDED | Shop at ECS Tuning | |||
| 16 | Plug terminal sending unit | 1 | 61131358703 | ENDED | Shop at ECS Tuning | |||||
| 17 | Plug housing | 2 POL. | 1 | 12521706091 | $4.02 | Shop at ECS Tuning |
