Cable covering for BMW 7 Series E32 740i (1994)

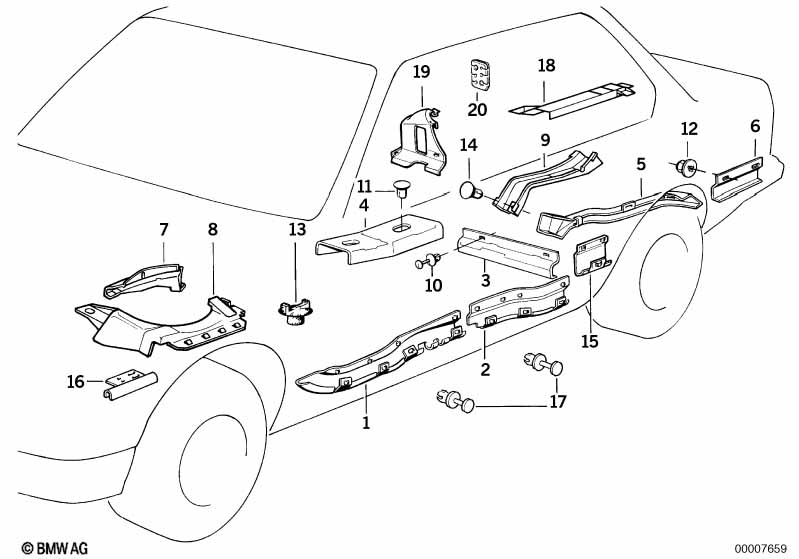

This Cable covering technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Covering left | 1 | 61131378385 | $4.74 | ENDED | Shop at ECS Tuning | ||||
| 01 | Covering right | 1 | 61131378386 | $4.74 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering left | 1 | 61131378377 | $4.18 | ENDED | Shop at ECS Tuning | ||||
| 02 | Covering right | 1 | 61131378378 | $4.18 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cable covering f seat carrier | 2 | 61131382380 | $6.47 | ENDED | Shop at ECS Tuning | ||||
| 05 | Covering, rear | 1 | 61131390643 | $13.62 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 61131390645 | $5.03 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cover | 1 | 61131379365 | $4.93 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cover | 1 | 61131379364 | $6.14 | ENDED | Shop at ECS Tuning | ||||
| 10 | Expanding rivet | 4 | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 11 | Push-button | SCHWARZ | 2 | 52101873545 | $1.34 | Shop at ECS Tuning | ||||
| 12 | Plastic nut for coarse threaded pin | M6 | X | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 13 | Push-button | 4 | 61131379831 | $0.97 | ENDED | Shop at ECS Tuning | ||||
| 14 | Push-button | ANTHRAZIT | 2 | 52101906933 | $0.41 | Shop at ECS Tuning | ||||
| 14 | Push-button | L=24 | 2 | 61131390089 | $0.37 | Shop at ECS Tuning | ||||
| 17 | Expanding rivet | 2 | 61131382239 | $0.23 | Shop at ECS Tuning | |||||
| 19 | Cable covering for right seat carrier | 1 | 61131384820 | $5.19 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
