Wiring connections-plug terminal for BMW 6 Series E24 633CSi (1981)

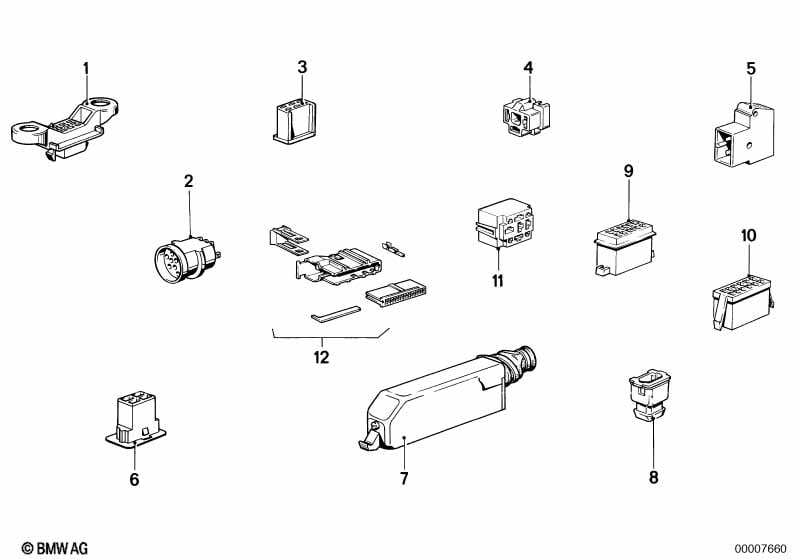

This Wiring connections-plug terminal technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Plug terminal for engine diagnosis | 1 | 09/1980 | 12521273100 | $1.87 | Shop at ECS Tuning | ||||
| 03 | Plug terminal for tail light | 2 | 61131361247 | $1.41 | ENDED | Shop at ECS Tuning | ||||
| 04 | Plug terminal for head light | 4 | 06/1987 | 61131352234 | $1.72 | ENDED | Shop at ECS Tuning | |||
| 04 | Plug | 4 | 06/1987 | 61131352357 | ENDED | Shop at ECS Tuning | ||||
| 05 | Plug terminal for hand lamp | 1 | 61131355486 | $1.05 | ENDED | Shop at ECS Tuning | ||||
| 06 | Plug terminal heater fan | 1 | 64111355785 | $1.33 | ENDED | Shop at ECS Tuning | ||||
| 07 | Plug housing | 25POL | 1 | 09/1981 | 12521277176 | $13.82 | ENDED | Shop at ECS Tuning | ||
| 08 | Plug housing | 2 POL. | 1 | 12521706091 | $4.02 | Shop at ECS Tuning | ||||
| 09 | Plug terminal for fuse box | 1 | 09/1981 | 61131368197 | $3.86 | Shop at ECS Tuning | ||||
| 10 | Plug terminal for fuse box | 1 | 09/1981 | 12521273189 | $2.73 | ENDED | Shop at ECS Tuning | |||
| 11 | Plug housing | 2 | 09/1980 | 61131369897 | $2.59 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
