Cable holder for BMW 6 Series E24 633CSi (1979)

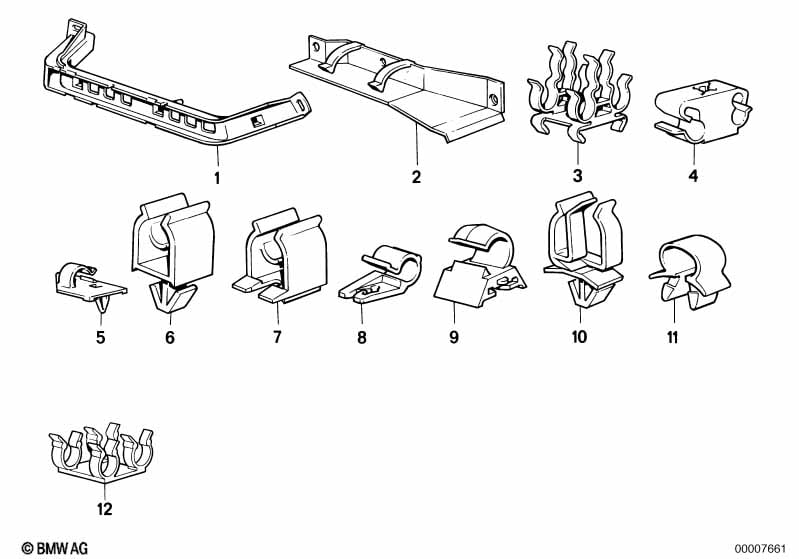

This Cable holder technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable holder | X | 61131361171 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cable holder | D=11MM | X | 61131375353 | $1.64 | ENDED | Shop at ECS Tuning | |||
| 04 | Cable holder | D=8MM | X | 61131370421 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Tubing support | D=6MM | X | 61131379134 | $0.72 | Shop at ECS Tuning | ||||
| 05 | Cable holder | D=9MM | X | 61131355190 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 06 | Cable holder | D=10MM | X | 61131269273 | $1.97 | Shop at ECS Tuning | ||||
| 07 | Bracket breather pipe | X | 16131177583 | $1.08 | Shop at ECS Tuning | |||||
| 08 | Cable holder | D=13-16MM | X | 61131368622 | $4.23 | Shop at ECS Tuning | ||||
| 09 | Cable holder | D=8MM | X | 61131369373 | $2.27 | Shop at ECS Tuning | ||||
| 10 | Cable holder | D=4-14MM | X | 61131369883 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Cable holder | D=12,8MM | X | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Cable holder | X | 61131369469 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| 11 | Tubing support | D=10,8MM | X | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 12 | Cable holder | X | 61131382381 | $0.62 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
