Wiring connections for BMW 7 Series E23 728 (1979)

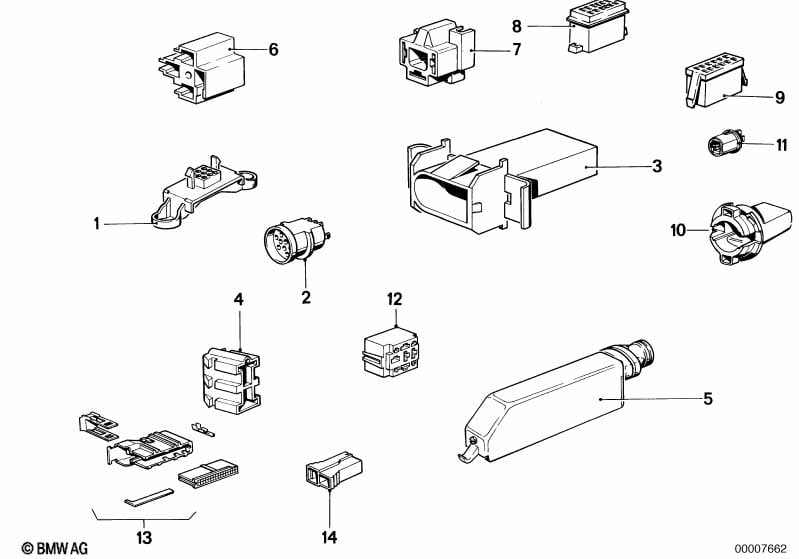

This Wiring connections technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plug terminal for engine diagnosis | 1 | 01/1980 | 61131355289 | $2.90 | ENDED | Shop at ECS Tuning | |||
| 03 | Plug terminal for rear fog light | X | 61131364478 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 04 | Plug terminal for hand lamp | X | 01/1980 | 61131357112 | ENDED | Shop at ECS Tuning | ||||
| 06 | Plug terminal for head light | X | 61131363752 | $1.21 | Shop at ECS Tuning | |||||
| 07 | Plug | X | 61131352357 | ENDED | Shop at ECS Tuning | |||||
| 10 | Lamp support glove box light | X | 61131362478 | $1.12 | ENDED | Shop at ECS Tuning | ||||
| 11 | Bulb socket | X | 64111362115 | $1.96 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
