Cable clamps/cable holder for BMW 7 Series E23 735i (1982)

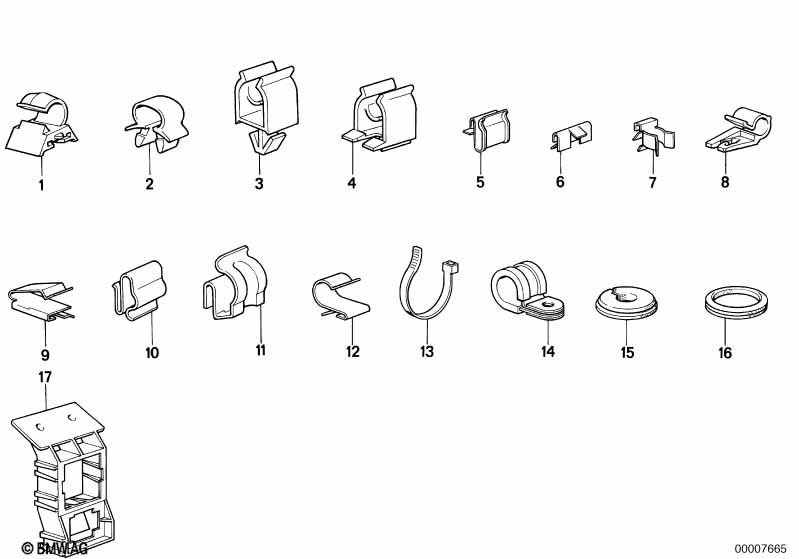

This Cable clamps/cable holder technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable holder | D=8MM | X | 61131369373 | $2.27 | Shop at ECS Tuning | ||||
| 02 | Cable holder | D=12,8MM | X | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 02 | Tubing support | D=10,8MM | X | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 03 | Cable holder | D=10MM | X | 61131269273 | $1.97 | Shop at ECS Tuning | ||||
| 04 | Bracket breather pipe | X | 16131177583 | $1.08 | Shop at ECS Tuning | |||||
| 05 | Cable clamp | D=4,5MM | X | 61131353865 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Clamp | X | 61131356086 | $0.23 | Shop at ECS Tuning | |||||
| 07 | Pipe clip | X | 18307565082 | $0.38 | Shop at ECS Tuning | |||||
| 08 | Holder | D=10MM | X | 61131362825 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Cable clamp | X | 61131360072 | ENDED | Shop at ECS Tuning | |||||
| 10 | Cable clamp | D=5MM | X | 61131353126 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Clamp | X | 07147202015 | Shop at ECS Tuning | ||||||
| 11 | Cable clamp | D=9/B=4 | X | 61131351045 | $0.42 | Shop at ECS Tuning | ||||
| 12 | Cable clamp | D=14/B=1,5 | X | 54101804049 | ENDED | Shop at ECS Tuning | ||||
| 12 | Cable clamp | D=15/B=4 | X | 61131353866 | $0.50 | Shop at ECS Tuning | ||||
| 12 | Cable clamp | D=8/B=1,5 | X | 61131354726 | $0.42 | Shop at ECS Tuning | ||||
| 13 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 14 | Clamp | D=16/6,4 | X | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 15 | Rubber grommet | X | 61131363028 | $2.93 | ENDED | Shop at ECS Tuning | ||||
| 16 | Rubber grommet | X | 34321118503 | ENDED | Shop at ECS Tuning | |||||
| 17 | Holder | 1 | 09/1981 | 61131368344 | $2.79 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
