Plug housing for BMW 5 Series E28 520i (1987)

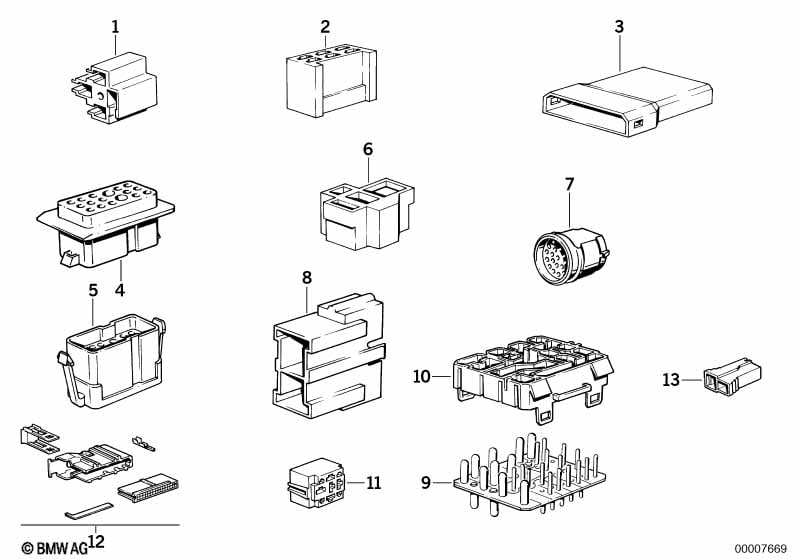

This Plug housing technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Plug terminal for head light | 2 | 61131363752 | $1.21 | Shop at ECS Tuning | |||||
| 02 | Plug terminal for tail light | 2 | 61131358725 | $1.38 | Shop at ECS Tuning | |||||
| 03 | Plug housing | 1 | 61131367097 | $1.77 | ENDED | Shop at ECS Tuning | ||||
| 04 | Plug terminal for fuse box | 1 | 61131368197 | $3.86 | Shop at ECS Tuning | |||||
| 05 | Plug terminal for fuse box | 1 | 12521273189 | $2.73 | ENDED | Shop at ECS Tuning | ||||
| 06 | Plug | 2 | 61131352357 | ENDED | Shop at ECS Tuning | |||||
| 07 | Plug terminal for engine diagnosis | 1 | 12521273100 | $1.87 | Shop at ECS Tuning | |||||
| 08 | Plug terminal for hand lamp | 1 | 61131366929 | $3.82 | ENDED | Shop at ECS Tuning | ||||
| 09 | Printed circuit board | 1 | 09/1982 | 61131373077 | $16.52 | ENDED | Shop at ECS Tuning | |||
| 10 | Plug housing | 1 | 09/1982 | 61131373078 | $3.09 | ENDED | Shop at ECS Tuning | |||
| 12 | Repair kit contact socket | 1 | 61139057151 | $45.80 | ENDED | Shop at ECS Tuning | ||||
| 13 | Plug housing | 5 | 61131372396 | $1.05 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
