Plug housing for BMW 3 Series E30 325i (1992)

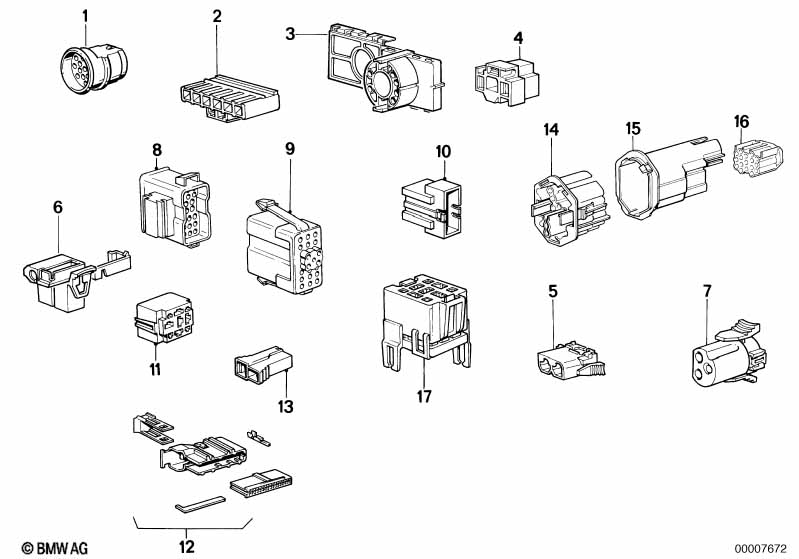

This Plug housing technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plug terminal for engine diagnosis | 1 | 12521273100 | $1.87 | Shop at ECS Tuning | |||||
| 02 | Plug terminal for tail light | 1 | 61131368833 | $1.36 | Shop at ECS Tuning | |||||
| 03 | Plug terminal for tail light | 2 | 61131382525 | $2.59 | ENDED | Shop at ECS Tuning | ||||
| 04 | Plug | 4 | 61131352357 | ENDED | Shop at ECS Tuning | |||||
| 05 | Plug housing | NATUR | 2 | 61131378401 | $1.40 | Shop at ECS Tuning | ||||
| 06 | Plug housing, white | 2 | 61131378417 | $1.15 | Shop at ECS Tuning | |||||
| 06 | Plug housing | 2 POL. GRAU | 2 | 61131378418 | $1.15 | Shop at ECS Tuning | ||||
| 06 | Plug housing, yellow | 2 | 61131378419 | $1.15 | Shop at ECS Tuning | |||||
| 07 | Plug housing | 3 POL. | 2 | 61131378410 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Plug terminal for fuse box | 1 | 61131370609 | $6.45 | Shop at ECS Tuning | |||||
| 09 | Plug terminal for fuse box | 1 | 12521277533 | $3.15 | ENDED | Shop at ECS Tuning | ||||
| 10 | Plug terminal for hand lamp | 1 | 61131366929 | $3.82 | ENDED | Shop at ECS Tuning | ||||
| 11 | Plug housing | 2 | 61131369897 | $2.59 | ENDED | Shop at ECS Tuning | ||||
| 12 | Repair kit contact socket | 1 | 61139057151 | $45.80 | ENDED | Shop at ECS Tuning | ||||
| 13 | Plug housing | 5 | 61131372396 | $1.05 | ENDED | Shop at ECS Tuning | ||||
| 14 | Plug housing | 4 | 61131375688 | $2.13 | ENDED | Shop at ECS Tuning | ||||
| 15 | Plug housing | 4 | 61131380587 | $5.96 | ENDED | Shop at ECS Tuning | ||||
| 16 | Plug housing | 4 | 61131375690 | $2.13 | Shop at ECS Tuning | |||||
| 17 | Relay holder, black white | 1 | 61131389113 | $5.32 | Shop at ECS Tuning |
