Various cable holders for BMW 5 Series E34 535i (1993)

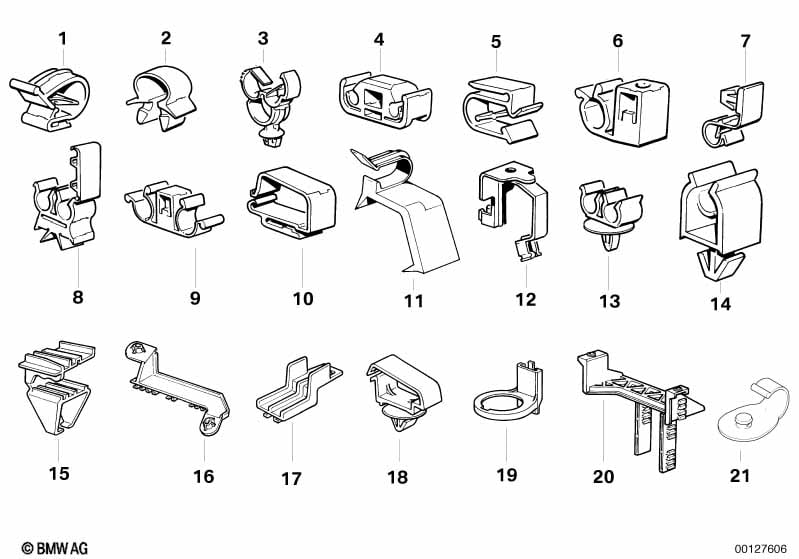

This Various cable holders technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable holder | X | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
| 01 | Clamp | X | 61131382377 | $0.62 | Shop at ECS Tuning | |||||
| 02 | Cable holder | D=16,8MM | X | 12521276147 | $0.58 | Shop at ECS Tuning | ||||
| 02 | Cable holder | D=12,8MM | X | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 02 | Cable holder | D=20MM | X | 61131379136 | $1.30 | Shop at ECS Tuning | ||||
| 02 | Tubing support | D=10,8MM | X | 64111364073 | $0.57 | Shop at ECS Tuning | ||||
| 03 | Tubing support | X | 61131379351 | $0.68 | Shop at ECS Tuning | |||||
| 04 | Tubing support | D=6MM | X | 61131379134 | $0.72 | Shop at ECS Tuning | ||||
| 05 | Cable holder | D=5MM | X | 61131379079 | $0.48 | Shop at ECS Tuning | ||||
| 06 | Cable holder | D=7MM | X | 61131379359 | $0.70 | Shop at ECS Tuning | ||||
| 07 | Cable holder | D=8MM | X | 61131379350 | $0.48 | Shop at ECS Tuning | ||||
| 08 | Tubing support | D=6MM | X | 61131379087 | $0.72 | Shop at ECS Tuning | ||||
| 09 | Cable holder | D=11MM | X | 61131379089 | $0.68 | Shop at ECS Tuning | ||||
| 10 | Cable holder | X | 61131379073 | $0.48 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cable holder | 1 | 61131379590 | $1.37 | ENDED | Shop at ECS Tuning | ||||
| 12 | Cable holder | 2 | 61131379840 | $1.51 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cable holder | 1 | 61131388997 | $0.68 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cable holder | 6 | 61131388386 | $0.48 | Shop at ECS Tuning | |||||
| 15 | Cable holder | 2 | 61131388447 | $0.93 | ENDED | Shop at ECS Tuning | ||||
| 18 | Cable clip | 1 | 61138355134 | $0.72 | Shop at ECS Tuning | |||||
| 21 | Cable holder | X | 61131370742 | $1.83 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
