Various cable clamps for BMW 5 Series E34 525ix (1995)

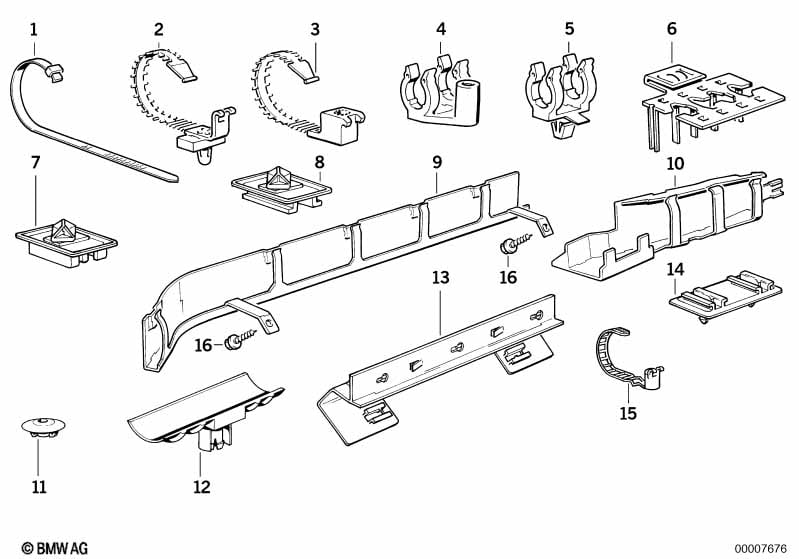

This Various cable clamps technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 02 | Cable tie | X | 61131391721 | $1.77 | Shop at ECS Tuning | |||||
| 03 | Cable tie | L=119MM | X | 61138357028 | Shop at ECS Tuning | |||||
| 04 | Plug-in connection bracket | X | 61131374899 | $1.43 | Shop at ECS Tuning | |||||
| 05 | Cable holder | D=13MM | X | 61136784633 | $0.63 | Shop at ECS Tuning | ||||
| 06 | Plug-in connection bracket | X | 61131378440 | $2.03 | Shop at ECS Tuning | |||||
| 07 | Bracket, plug connection black | X | 61131378944 | $0.87 | Shop at ECS Tuning | |||||
| 08 | Bracket, plug connection black | X | 61131378908 | $0.87 | Shop at ECS Tuning | |||||
| 09 | Cable holder | X | 61131379138 | $20.05 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cable holder | X | 61131384823 | ENDED | Shop at ECS Tuning | |||||
| 11 | Blind plug | D=18.5MM | X | 61131379865 | $2.65 | ENDED | Shop at ECS Tuning | |||
| 11 | Blind plug | D=20MM | X | 61131391714 | $0.55 | Shop at ECS Tuning | ||||
| 12 | Cable holder | X | 61131379749 | $0.85 | ENDED | Shop at ECS Tuning | ||||
| 13 | Cable holder | X | 61131382107 | $3.85 | ENDED | Shop at ECS Tuning | ||||
| 14 | Plug-in connection bracket | X | 61131382105 | $1.28 | Shop at ECS Tuning | |||||
| 15 | Cable tie | L=188MM | X | 61131389024 | $0.55 | Shop at ECS Tuning | ||||
| 15 | Cable tie | L=119MM | X | 61138357028 | Shop at ECS Tuning | |||||
| 16 | Hex head screw | ST4,8X30-C-Z2 | 2 | 07119900409 | $0.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525ix Various cable clamps?
- This technical diagram illustrates the Various cable clamps within the Vehicle electrical system group for the 5 Series E34 525ix produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Cable tie (Part #61131377134).
- Which models use the hardware listed in this Various cable clamps?
- The hardware and components featured in the Various cable clamps are specific to the 5 Series E34 525ix produced during 1995. These technical specifications ensure that parts like the Cable tie (61131377134) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various cable clamps assembly?
- Each item in the Various cable clamps corresponds to the numbered list below the illustration. For the 5 Series E34 525ix, you can identify the Cable tie by locating its position on the schematic, which then links to the official BMW part number 61131377134 for the Vehicle electrical system section.
