Various plug terminals for BMW 5 Series E34 525tds (1996)

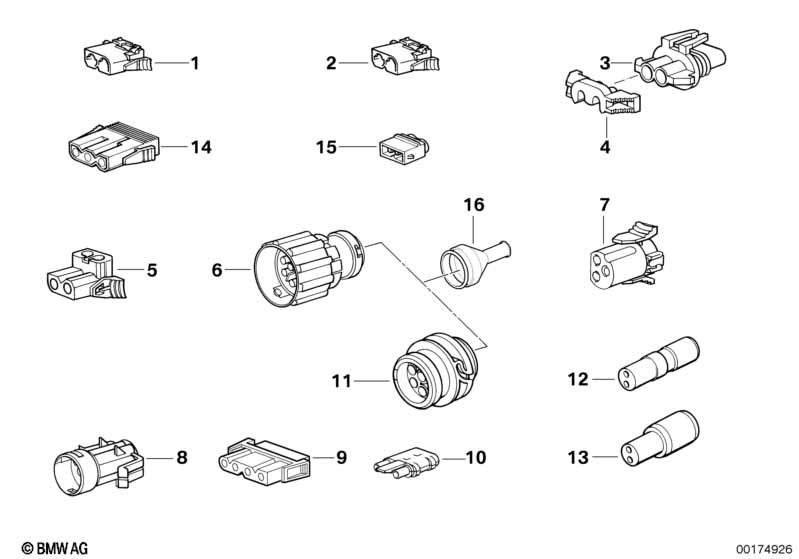

This Various plug terminals technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plug terminal black | SCHWARZ | 2 | 61131378400 | $1.40 | Shop at ECS Tuning | ||||
| 01 | Plug housing | NATUR | 2 | 61131378401 | $1.40 | Shop at ECS Tuning | ||||
| 01 | Plug housing | GELB | 2 | 61131378403 | $1.48 | Shop at ECS Tuning | ||||
| 02 | Plug housing | 2 POL. / GRAU | 2 | 61131378402 | $0.98 | Shop at ECS Tuning | ||||
| 05 | Plug terminal black | 2 | 61131378416 | $1.15 | Shop at ECS Tuning | |||||
| 05 | Plug housing, white | X | 61131378417 | $1.15 | Shop at ECS Tuning | |||||
| 06 | Plug terminal foglamps | 2 | 61131378901 | $13.33 | ENDED | Shop at ECS Tuning | ||||
| 07 | Plug housing | 3 POL. | 1 | 61131378410 | $1.65 | Shop at ECS Tuning | ||||
| 09 | Plug housing | 4 POL. | 2 | 61131378134 | $4.27 | Shop at ECS Tuning | ||||
| 10 | Plug housing | X | 61131378408 | $1.08 | Shop at ECS Tuning | |||||
| 12 | Plug terminal for head lamp cleaning de. | 2 | 61131373821 | $3.38 | ENDED | Shop at ECS Tuning | ||||
| 13 | Plug terminal for head lamp cleaning de. | 2 | 61131373822 | $3.38 | ENDED | Shop at ECS Tuning | ||||
| 14 | Plug housing | 1 | 61131378955 | $1.65 | Shop at ECS Tuning | |||||
| 16 | Protection cap | 2 | 61131378979 | $2.25 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
