Various cable clamps for BMW 5 Series E34 525i (1996)

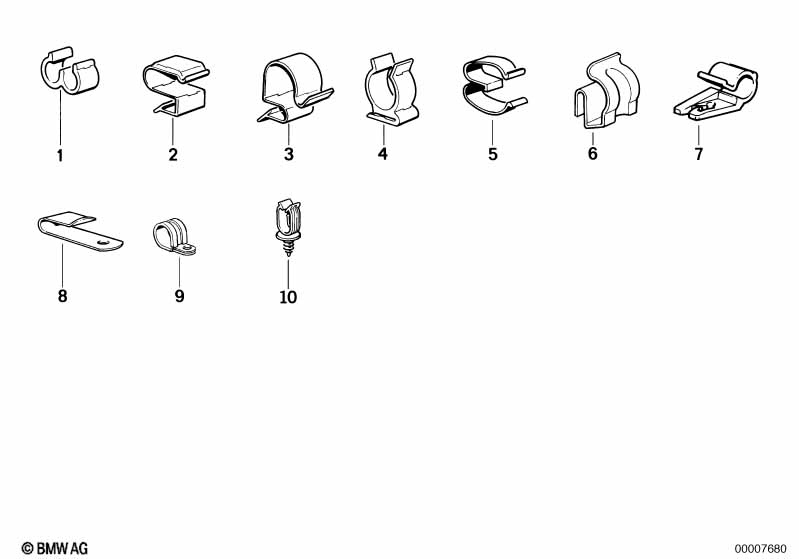

This Various cable clamps technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable clamp | X | 61131365412 | $0.50 | Shop at ECS Tuning | |||||
| 02 | Fixing clamp | X | 11787547213 | $0.40 | Shop at ECS Tuning | |||||
| 03 | Cable clamp | D=10MM | X | 61131354601 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Clamp | D=24,5MM | 2 | 61131379580 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Cable clamp | D=7-12MM | 4 | 61131379811 | $0.50 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | X | 07147202015 | Shop at ECS Tuning | ||||||
| 07 | Holder | D=10MM | X | 61131362825 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Cable clamp | 4 | 61131361311 | Shop at ECS Tuning | ||||||
| 10 | Cable holder | SCHWARZ | X | 61131389898 | $0.55 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
