Various relays for BMW 7 Series E32 735iL (1992)

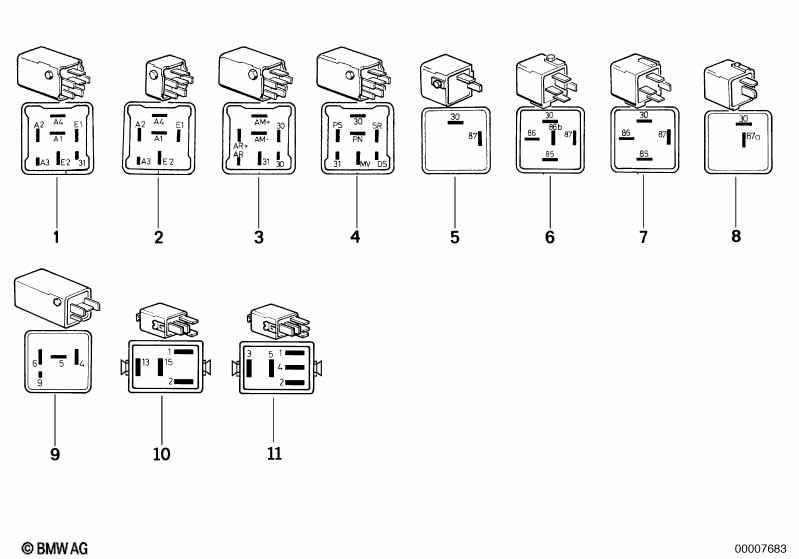

This Various relays technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay day-light-driving | 1 | 61311378052 | $90.80 | ENDED | Shop at ECS Tuning | ||||
| 03 | Pressure adjusting device modul | 1 | 61351378371 | $125.69 | ENDED | Shop at ECS Tuning | ||||
| 04 | Head lamp cleaning module | 1 | 09/1988 | 61351389002 | $69.84 | Shop at ECS Tuning | ||||
| 04 | Head lamp cleaning module | 1 | 09/1988 | 61351389002 | $69.84 | Shop at ECS Tuning | ||||
| 05 | Connection plug, golden brown | 30/87 | 1 | 61368366282 | $6.12 | SI 121994675, SI 1300012, SI 612698792 | Shop at ECS Tuning | |||
| For vehicles with Auxiliary heating |
=Yes |
|||||||||
| 06 | Relay, make contact, turquoise blue | 1 | 61361388910 | $13.96 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 07 | Relay | 1 | 61311154784 | ENDED | Shop at ECS Tuning | |||||
| 08 | Plug connector, beige | 30/87A | 1 | 61368366551 | $5.78 | SI 121994675 | Shop at ECS Tuning | |||
| 10 | Minirelay, make contact, yellow | 1 | 08/1994 | 61366902041 | $16.92 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Mini-relay contactor | 1 | 61367924276 | Shop at ECS Tuning | ||||||
| 10 | Relay | 1 | 61361393411 | $7.58 | +core | Shop at ECS Tuning | ||||
| 11 | Minirelay, change-over contact, grey | 1 | 61361393415 | $13.96 | ENDED, +core | Shop at ECS Tuning | ||||
| 11 | Mini-relay contactor | 1 | 61367924276 | Shop at ECS Tuning | ||||||
