Body control units for BMW 5 Series E34 535i (1992)

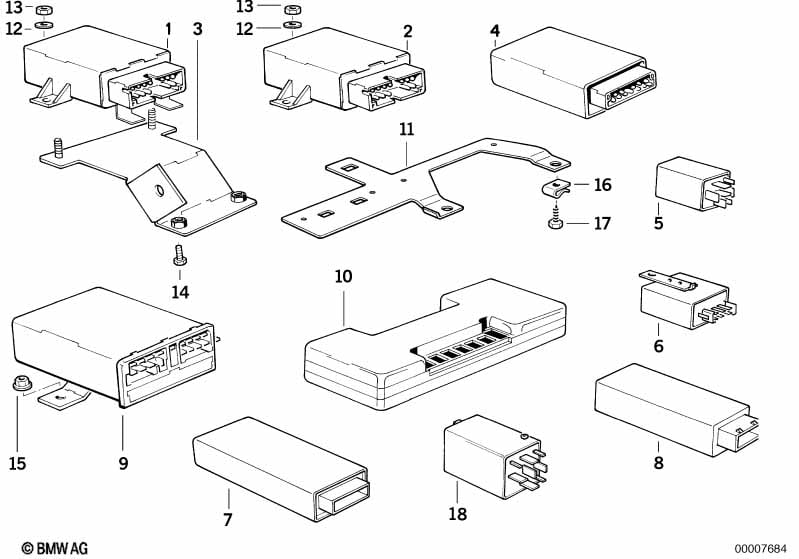

This Body control units technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO HEATER ONLY APPLIES TO IHKR 2 ONLY APPLIES TO IHKR 3 |
||||||||||
| 01 | Relay boxindep.ventil.sys/-heater sys. | 1 | 09/1989 | 61361391724 | $244.38 | +core | Shop at ECS Tuning | |||
| 02 | Control unit AUC | 1 | 61351390352 | $223.44 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO IHKA ONLY APPLIES TO IHKR 1 |
||||||||||
| 02 | Relay boxindep.ventil.sys/-heater sys. | 1 | 61311379737 | $244.38 | +core | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 61311389004 | ENDED | Shop at ECS Tuning | |||||
| 07 | Control unit head rest rear | 1 | 61311378639 | $102.71 | ENDED | Shop at ECS Tuning | ||||
| 08 | Control unit sun blind | 1 | 61351382995 | $125.69 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary heating |
=Yes |
|||||||||
| 09 | Control unit auxiliary heater | 1 | 64121378085 | $369.08 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Seat, electrically adjustable, front and Memory |
=Yes =Yes |
|||||||||
| 10 | Seat and mirror memory control unit | 1 | 03/1993 | 61351388561 | $1780.49 | Shop at ECS Tuning | ||||
| 11 | Bracket, control unit | 1 | 61131382882 | $5.08 | Shop at ECS Tuning | |||||
| 12 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 13 | Hex nut | M6-04-2-ZN | 2 | 07119921054 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Body nut | B3,9 | 2 | 51131914097 | $1.03 | Shop at ECS Tuning | ||||
| 17 | Hex head screw | ST3,9X16-C-Z2 | 2 | 07119916808 | $0.11 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
