Control unitrelais connections for BMW 3 Series E21 320i (1977)

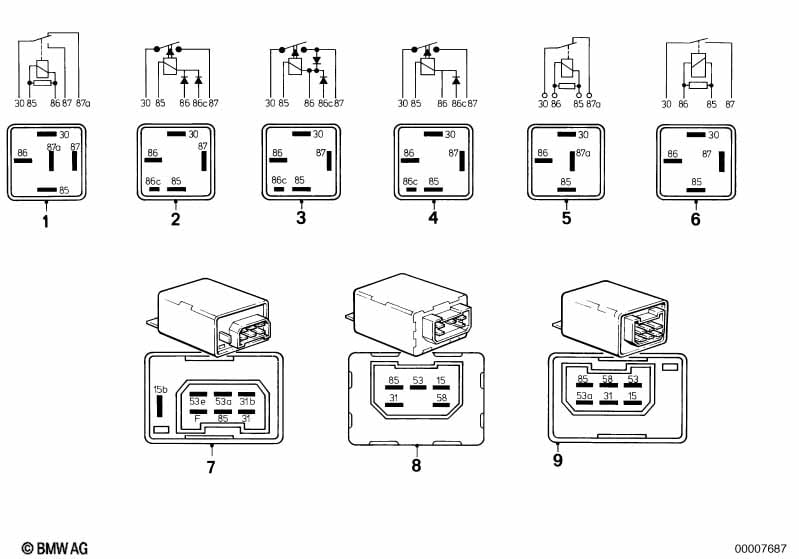

This Control unitrelais connections technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay, change-over contact,signal violet | X | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 02 | Diode relay | 1 | 02/1976 | 61311362224 | $20.96 | ENDED | Shop at ECS Tuning | |||
| 06 | Relay | GELB | X | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 06 | Mini-relay | X | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 07 | Wiper-wash-interval control unit | 1 | 61311357904 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 08 | Wiper-wash-interval control unit | 1 | 02/1981 | 61311358491 | $161.95 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Control unitrelais connections?
- This technical diagram illustrates the Control unitrelais connections within the Vehicle electrical system group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Relay, change-over contact,signal violet (Part #61361388911).
- Which models use the hardware listed in this Control unitrelais connections?
- The hardware and components featured in the Control unitrelais connections are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Relay, change-over contact,signal violet (61361388911) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unitrelais connections assembly?
- Each item in the Control unitrelais connections corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Relay, change-over contact,signal violet by locating its position on the schematic, which then links to the official BMW part number 61361388911 for the Vehicle electrical system section.
