Body moduls for BMW 5 Series E34 525i (1990)

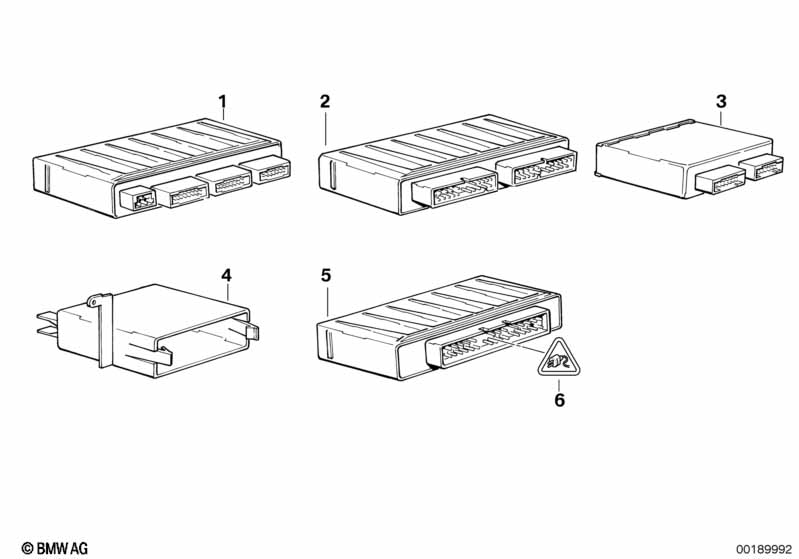

This Body moduls technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Basic module | 1 | 09/1991 | 61358360104 | $460.84 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 01 | Basic module | 1 | 09/1991 | 61351390354 | $374.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Basic module | 1 | 09/1991 | 61358356096 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Nordic countries version |
=Yes |
|||||||||
| 01 | Basic module | 1 | 09/1991 | 61358356097 | +core | Shop at ECS Tuning | ||||
| 02 | Relay | 1 | 61351379741 | ENDED | Shop at ECS Tuning | |||||
| 03 | Central locking system module | 1 | 09/1991 | 61351384201 | $447.52 | Shop at ECS Tuning | ||||
| 03 | Check-control module | 1 | 61351388614 | $125.69 | Shop at ECS Tuning | |||||
| 05 | Bulb testing device | 1 | 61358350375 | Shop at ECS Tuning | ||||||
| 06 | Plug housing | 1 | 61131378141 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
