Various relays for BMW 5 Series E34 525tds (1995)

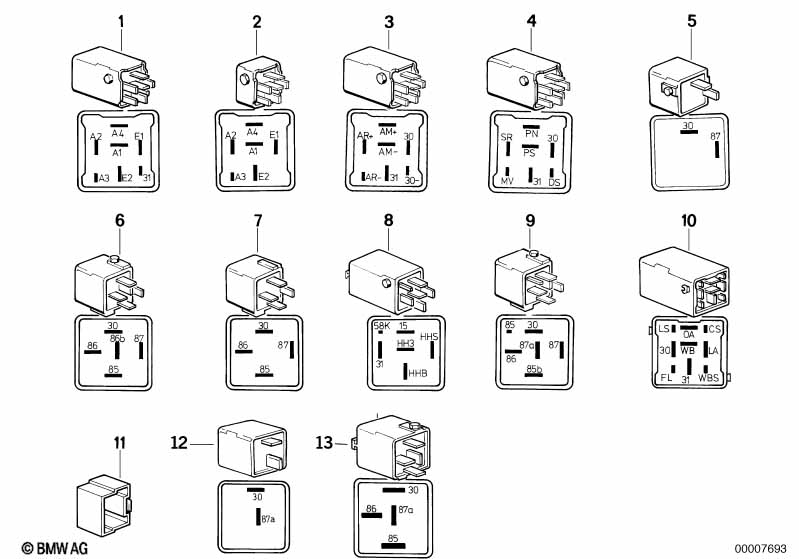

This Various relays technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Head lamp cleaning module | 1 | 61351389002 | $69.84 | Shop at ECS Tuning | |||||
| 05 | Connection plug, golden brown | 30/87 | 1 | 61368366282 | $6.12 | SI 121994675, SI 1300012, SI 612698792 | Shop at ECS Tuning | |||
| 06 | Relay, make contact, turquoise blue | 1 | 61361388910 | $13.96 | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 07 | Relay | 1 | 61311154784 | ENDED | Shop at ECS Tuning | |||||
| 08 | Control unit heating rear window | 1 | 61351384825 | $47.49 | Shop at ECS Tuning | |||||
| 09 | Relay, change-over contact, pine green | 1 | 61358350566 | $13.96 | Shop at ECS Tuning | |||||
| 10 | Connection plug w.notch lock | 1 | 61351391725 | $12.12 | Shop at ECS Tuning | |||||
| 11 | Covering cap | X | 61131389615 | $1.00 | ENDED | Shop at ECS Tuning | ||||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
