Fuse box for BMW 7 Series E23 728iS (1982)

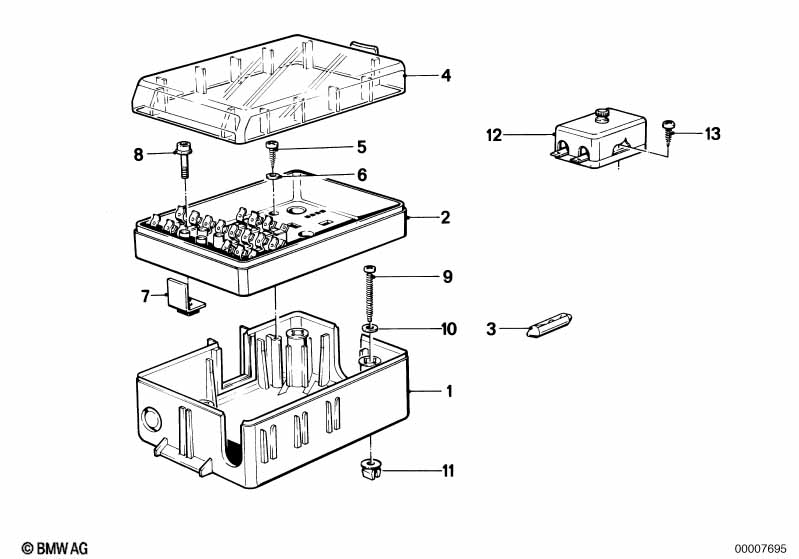

This Fuse box technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring box | 1 | 09/1980 | 09/1982 | 61131368305 | $62.83 | Shop at ECS Tuning | |||
| 02 | Fuse box | 1 | 09/1980 | 09/1982 | 61131368303 | $68.58 | ENDED | Shop at ECS Tuning | ||
| 03 | Fuse | 8A | X | 09/1982 | 61138760138 | $1.83 | Shop at ECS Tuning | |||
| 03 | Fuse | 25A | X | 09/1982 | 61138760139 | $1.83 | ENDED | Shop at ECS Tuning | ||
| 03 | Fuse | 16A | X | 09/1982 | 61138760140 | $1.83 | Shop at ECS Tuning | |||
| 04 | Cover | (DEUTSCH) | 1 | 09/1980 | 09/1982 | 61131366836 | $38.30 | ENDED | Shop at ECS Tuning | |
| 05 | Fillister head screw | M5X10 | 2 | 09/1982 | 07119907639 | $0.40 | Shop at ECS Tuning | |||
| 06 | Wave washer | B5 | 2 | 09/1982 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 07 | Holder | 1 | 09/1982 | 61131366875 | $7.50 | Shop at ECS Tuning | ||||
| 08 | Fillister-head screw | M5X30-Z1 | 1 | 09/1982 | 07119918610 | ENDED | Shop at ECS Tuning | |||
| 09 | Fillister head self-tapping screw | ST3,9X19 | 3 | 09/1980 | 09/1982 | 07119906744 | $0.37 | Shop at ECS Tuning | ||
| 10 | Washer | A6,4-ZNNIV SI | 3 | 09/1982 | 07119904202 | Shop at ECS Tuning | ||||
| 11 | Nut | 3 | 09/1980 | 09/1982 | 61131362595 | $0.50 | ENDED | Shop at ECS Tuning | ||
| 12 | Fuse box | 1 | 09/1982 | 61131353136 | $16.21 | ENDED | Shop at ECS Tuning | |||
| 13 | Fillister head self-tapping screw | ST4,2X13 | 2 | 09/1982 | 07119906748 | $0.18 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728iS Fuse box?
- This technical diagram illustrates the Fuse box within the Vehicle electrical system group for the 7 Series E23 728iS produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Wiring box (Part #61131368305).
- Which models use the hardware listed in this Fuse box?
- The hardware and components featured in the Fuse box are specific to the 7 Series E23 728iS produced during 1982. These technical specifications ensure that parts like the Wiring box (61131368305) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuse box assembly?
- Each item in the Fuse box corresponds to the numbered list below the illustration. For the 7 Series E23 728iS, you can identify the Wiring box by locating its position on the schematic, which then links to the official BMW part number 61131368305 for the Vehicle electrical system section.
