Relay for BMW 7 Series E23 728iS (1982)

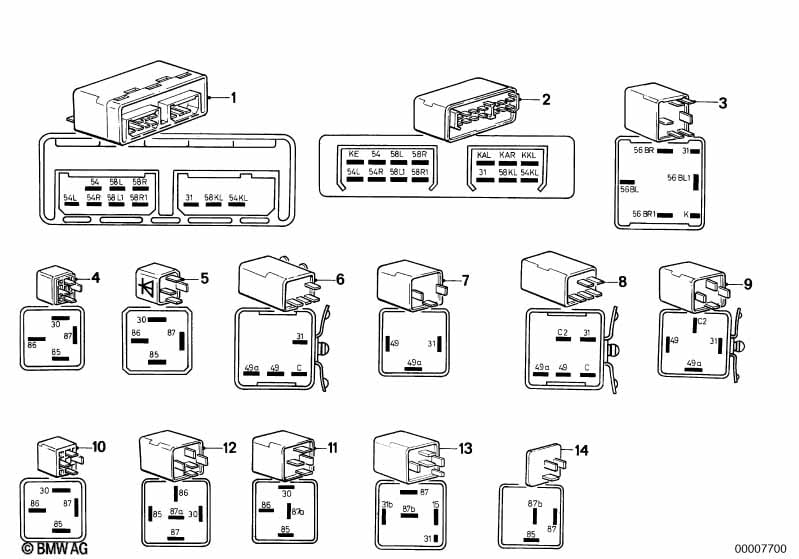

This Relay technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728iS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Relay | GELB | X | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Mini-relay | X | 61311373588 | $11.38 | Shop at ECS Tuning | |||||
| 05 | Diode relay | 1 | 61311380014 | $17.00 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hazard warning relay | 1 | 09/1981 | 61311371909 | Shop at ECS Tuning | |||||
| For vehicles with Airbag |
=Yes |
|||||||||
| 07 | Hazard warning relay | 1 | 02/2004 | 61311371851 | $51.07 | Shop at ECS Tuning | ||||
| 07 | Hazard warning relay | 1 | 61316948089 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Trailer coupling |
=Yes |
|||||||||
| 09 | Hazard warning relay | 1 | 09/1981 | 61311372021 | $48.49 | Shop at ECS Tuning | ||||
| For vehicles with Trailer coupling and Airbag |
=Yes =Yes |
|||||||||
| 09 | Hazard warning relay | 1 | 61311377115 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 10 | Relay | 1 | 61311154784 | ENDED | Shop at ECS Tuning | |||||
| 11 | Relay | 1 | 61311373916 | $23.75 | ENDED | Shop at ECS Tuning | ||||
| 12 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728iS Relay?
- This technical diagram illustrates the Relay within the Vehicle electrical system group for the 7 Series E23 728iS produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Relay (Part #61311373585).
- Which models use the hardware listed in this Relay?
- The hardware and components featured in the Relay are specific to the 7 Series E23 728iS produced during 1982. These technical specifications ensure that parts like the Relay (61311373585) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Relay assembly?
- Each item in the Relay corresponds to the numbered list below the illustration. For the 7 Series E23 728iS, you can identify the Relay by locating its position on the schematic, which then links to the official BMW part number 61311373585 for the Vehicle electrical system section.
