Various relays for BMW 5 Series E34 535i (1992)

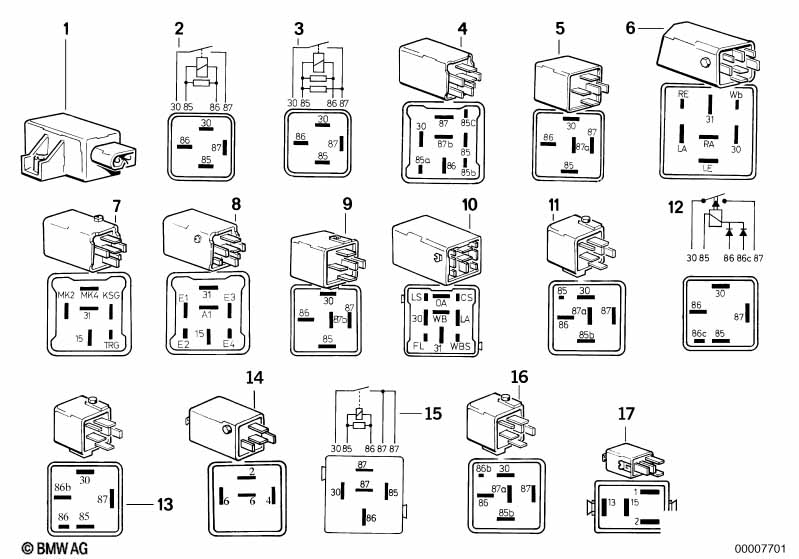

This Various relays technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Emergency switch | 1 | 61318350284 | $64.14 | Shop at ECS Tuning | |||||
| 02 | Relay, make contact, white green | X | 61368373700 | $13.96 | Shop at ECS Tuning | |||||
| 03 | Relay, make contact, clay brown | 1 | 61311388729 | $13.96 | Shop at ECS Tuning | |||||
| 04 | Relay | 1 | 61311378302 | $47.49 | Shop at ECS Tuning | |||||
| 05 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 08 | Thermo switchgear | 1 | 61358365846 | $460.91 | ENDED | Shop at ECS Tuning | ||||
| 09 | Relay, two-pole make contact, black | 1 | 61361388364 | $13.96 | Shop at ECS Tuning | |||||
| 10 | Crash alarm relay | 1 | 61358364691 | $62.85 | Shop at ECS Tuning | |||||
| 11 | Relay, change-over contact, pine green | 1 | 61358350566 | $13.96 | Shop at ECS Tuning | |||||
| 16 | Change over relay | SERVICE | 1 | 61368350565 | $40.04 | Shop at ECS Tuning | ||||
| 17 | Minirelay, make contact, yellow | 1 | 12/1995 | 61366902041 | $16.92 | ENDED, +core | Shop at ECS Tuning | |||
| 17 | Mini-relay contactor | 1 | 61367924276 | Shop at ECS Tuning | ||||||
| 17 | Relay | 1 | 61361393411 | $7.58 | +core | Shop at ECS Tuning | ||||
