Body control units and moduls for BMW 5 Series E34 535i (1993)

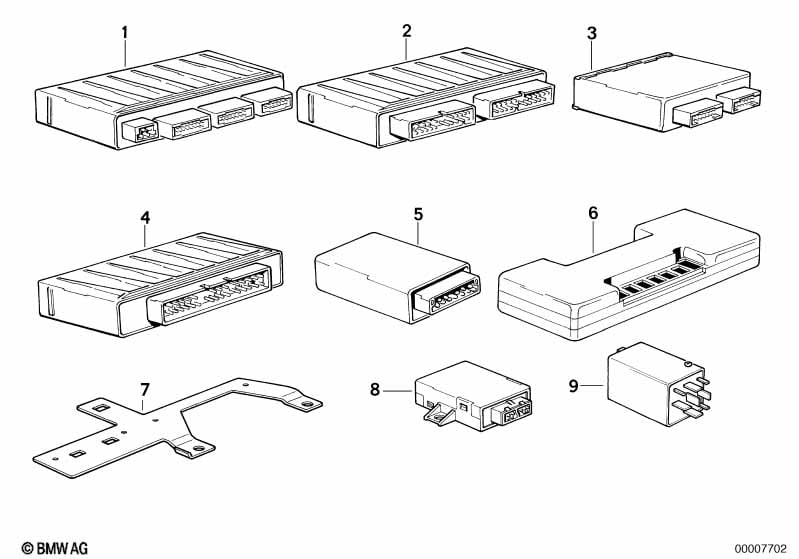

This Body control units and moduls technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-Basic module | 1 | 09/1991 | 05/1993 | 61358359538 | $187.57 | ENDED | Shop at ECS Tuning | ||
| 01 | Basic module | 1 | 09/1991 | 61358368571 | $460.84 | Shop at ECS Tuning | ||||
| 02 | Relay | 1 | 61351379741 | ENDED | Shop at ECS Tuning | |||||
| 03 | Check-control module | 1 | 61351388614 | $125.69 | Shop at ECS Tuning | |||||
| 04 | Bulb testing device | 1 | 61358350377 | Shop at ECS Tuning | ||||||
| 05 | Control unit head rest rear | 1 | 61311378639 | $102.71 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Seat, electrically adjustable, front and Memory |
=Yes =Yes |
|||||||||
| 06 | Seat and mirror memory control unit | 1 | 09/1992 | 61358356510 | $314.22 | Shop at ECS Tuning | ||||
| 07 | Bracket, control unit | 1 | 61131382882 | $5.08 | Shop at ECS Tuning | |||||
| 09 | Relay f Independent ventilation system | 1 | 61358359086 | $23.75 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
