Single components for rear carrier for BMW 5 Series E34 525i (1990)

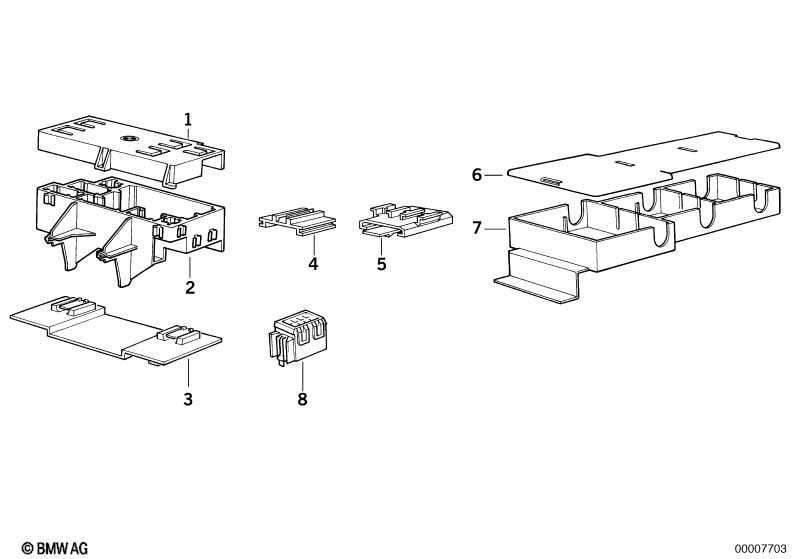

This Single components for rear carrier technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Module guide for carrier | 1 | 61131379555 | $8.30 | Shop at ECS Tuning | |||||
| 02 | Instrument carrier, rear left | 1 | 61131378539 | $32.22 | Shop at ECS Tuning | |||||
| For vehicles with Seat heating |
=Yes |
|||||||||
| 03 | Carrier adapter | 1 | 61131388120 | $2.20 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof, electric |
=Yes |
|||||||||
| 04 | Plug connection adapter | 1 | 61131382537 | $4.38 | Shop at ECS Tuning | |||||
| 05 | Plug connection adapter | 1 | 61111382133 | $2.04 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fuse carrier | 4X | 1 | 61131378982 | $8.35 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
