Control unitrelais connections for BMW 7 Series E23 728 (1979)

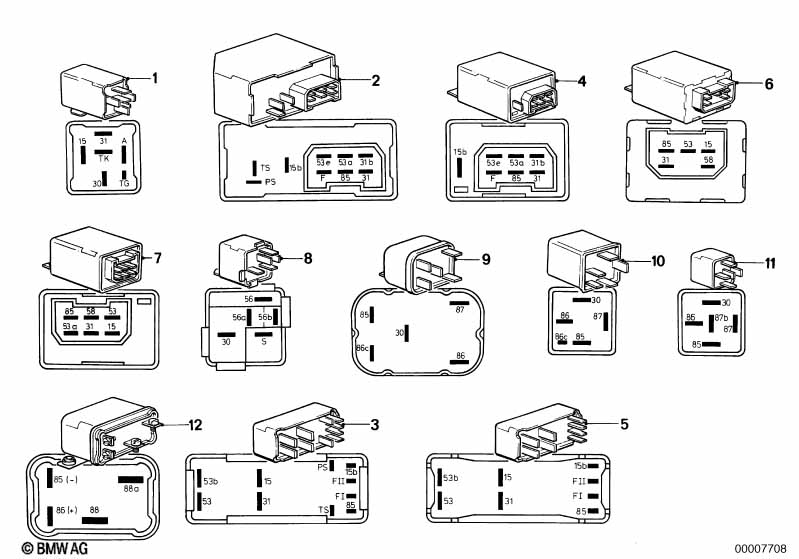

This Control unitrelais connections technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Control unit intensiv cleaner | 1 | 09/1982 | 61311367659 | $105.83 | Shop at ECS Tuning | ||||
| 04 | Wiper-wash-interval control unit | 1 | 09/1982 | 61311357904 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system |
=Yes |
|||||||||
| 06 | Wiper-wash-interval control unit | 1 | 09/1981 | 61311358491 | $161.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 08 | Relay | 1 | 61311362386 | $47.14 | ENDED | Shop at ECS Tuning | ||||
| 09 | Cold start relay | 1 | 61311354858 | $99.58 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
