Door lock heating for BMW 3 Series E30 325e (1987)

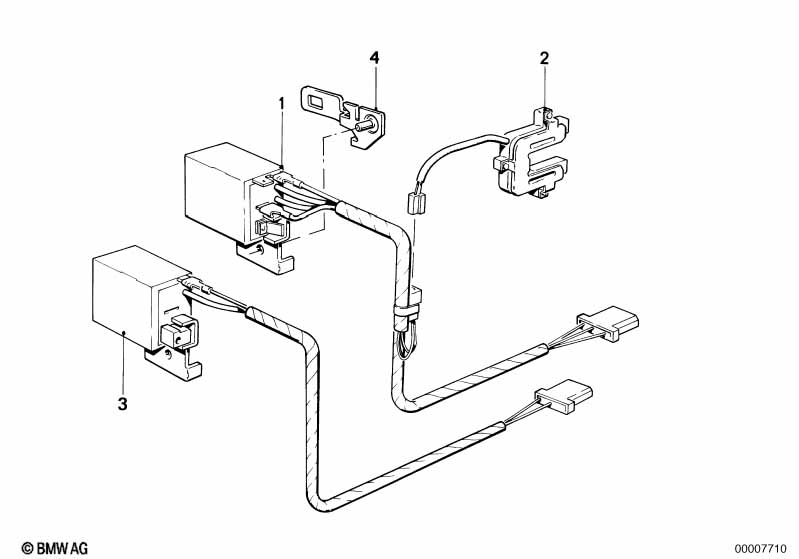

This Door lock heating technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Control unit door lock heating | 1 | 09/1983 | 61311374784 | $181.48 | ENDED | Shop at ECS Tuning | |||
| 02 | Heating ring left | 1 | 09/1983 | 51211375188 | $69.55 | ENDED | Shop at ECS Tuning | |||
| 03 | Contact interior light retarder | 1 | 09/1983 | 61311374614 | $42.97 | ENDED | Shop at ECS Tuning | |||
| 04 | Bracket left | 1 | 51211906403 | $2.62 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325e Door lock heating?
- This technical diagram illustrates the Door lock heating within the Vehicle electrical system group for the 3 Series E30 325e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Control unit door lock heating (Part #61311374784).
- Which models use the hardware listed in this Door lock heating?
- The hardware and components featured in the Door lock heating are specific to the 3 Series E30 325e produced during 1987. These technical specifications ensure that parts like the Control unit door lock heating (61311374784) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door lock heating assembly?
- Each item in the Door lock heating corresponds to the numbered list below the illustration. For the 3 Series E30 325e, you can identify the Control unit door lock heating by locating its position on the schematic, which then links to the official BMW part number 61311374784 for the Vehicle electrical system section.
