Fuse box for BMW 6 Series E24 633CSi (1979)

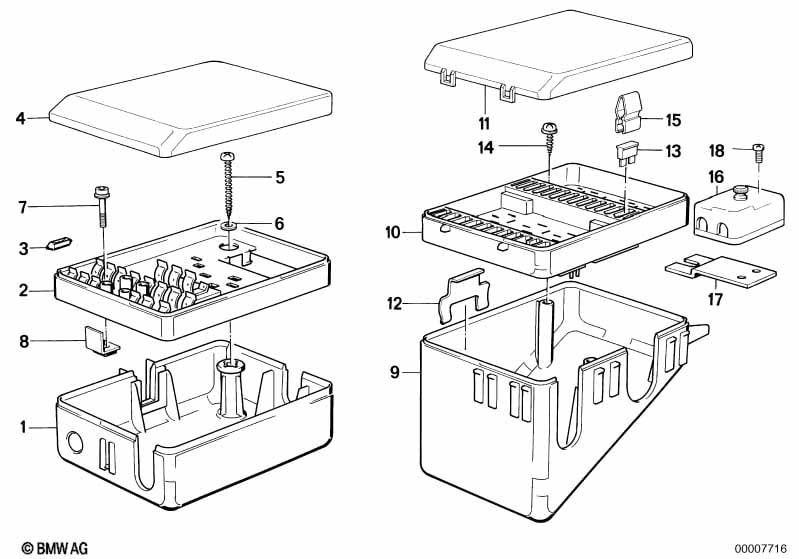

This Fuse box technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring box | 1 | 09/1980 | 61131354516 | $17.41 | Shop at ECS Tuning | ||||
| 02 | Fuse box | 1 | 09/1980 | 61131364736 | $100.86 | ENDED | Shop at ECS Tuning | |||
| 03 | Fuse | 8A | X | 09/1982 | 61138760138 | $1.83 | Shop at ECS Tuning | |||

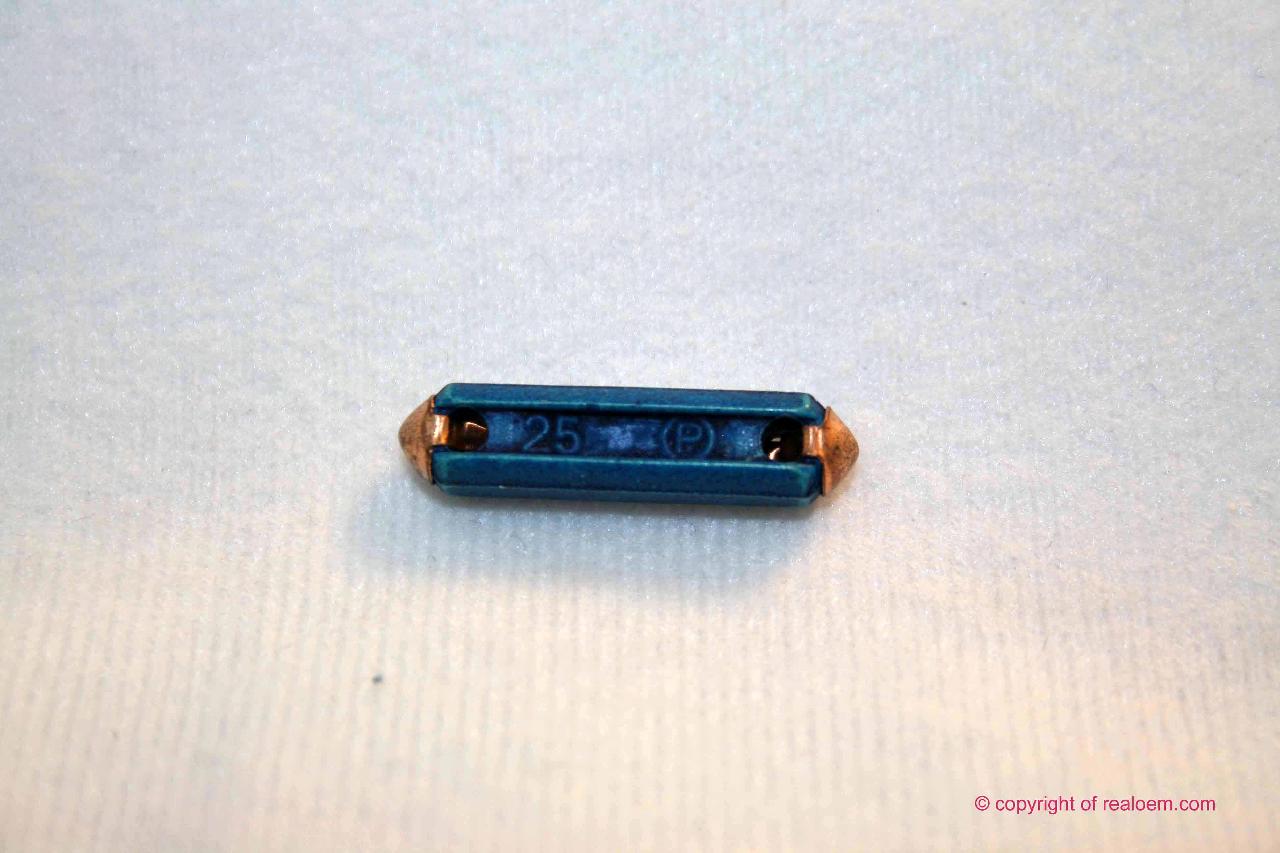

| 03 | Fuse | 25A | 3 | 09/1982 | 61138760139 | $1.83 | ENDED | Shop at ECS Tuning | ||
| 03 | Fuse | 16A | 5 | 09/1982 | 61138760140 | $1.83 | Shop at ECS Tuning | |||
| 03 | Fuse | 8A | X | 09/1982 | 61139058805 | $0.23 | Shop at ECS Tuning | |||
| 04 | Cover | (ENGLISH) | 1 | 09/1980 | 61131362271 | $23.58 | Shop at ECS Tuning | |||
| 05 | Fillister head self-tapping screw | ST5,5X55 | 3 | 09/1982 | 07119906787 | $0.30 | Shop at ECS Tuning | |||
| 06 | Washer | A6,4-ZNNIV SI | 3 | 09/1982 | 07119904202 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M5X30-Z1 | 1 | 09/1982 | 07119918610 | ENDED | Shop at ECS Tuning | |||
| 08 | Holder | 1 | 09/1982 | 61131366875 | $7.50 | Shop at ECS Tuning | ||||
| 16 | Fuse box | 1 | 61131373433 | $16.10 | ENDED | Shop at ECS Tuning | ||||
| 17 | Fuse box holder | 1 | 61131373310 | $2.79 | ENDED | Shop at ECS Tuning | ||||
| 18 | Fillister head screw | M5X12-ZN | 1 | 07119907627 | $0.43 | Shop at ECS Tuning |
