Fuse box for BMW 3 Series E30 320i (1988)

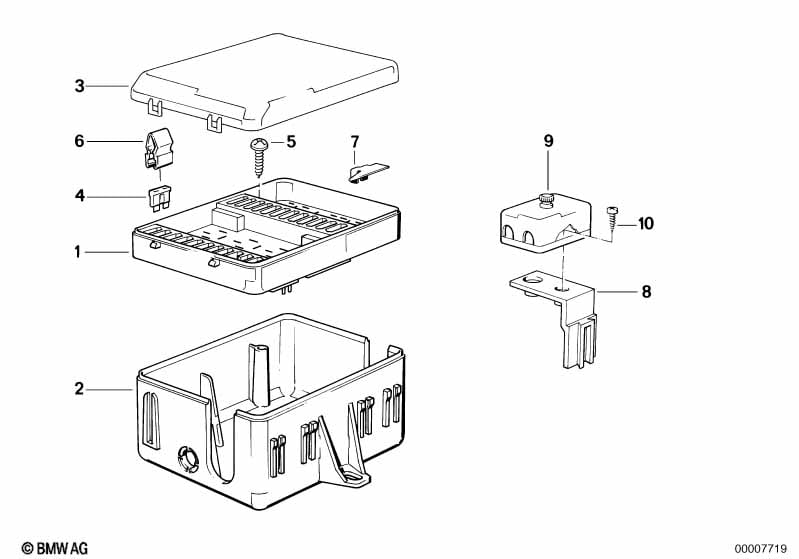

This Fuse box technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuse box | 1 | 61131370761 | $260.09 | Shop at ECS Tuning | |||||
| 02 | Wiring box | 1 | 09/1986 | 61131380973 | $25.86 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | 1 | 61131368802 | $29.44 | Shop at ECS Tuning | |||||
| 04 | Fuse brown | 7,5A | X | 61131372524 | $0.58 | Shop at ECS Tuning | ||||
| 04 | Fuse blue | 15A | X | 61131372526 | Shop at ECS Tuning | |||||
| 04 | Fuse Maxi, yellow | 20A | X | 61131372527 | Shop at ECS Tuning | |||||
| 04 | Fuse white | 25A | X | 61131372528 | Shop at ECS Tuning | |||||
| 04 | Fuse green | 30A | X | 61131372529 | Shop at ECS Tuning | |||||
| 04 | Fuse | 25A | X | 61131372627 | $0.75 | ENDED | Shop at ECS Tuning | |||
| 04 | Fuse | 2A | X | 61131386849 | $0.75 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST3,5X19-Z1 | 2 | 07119907802 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST3,5X19-Z1 | 2 | 07119904429 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fuse clip | 1 | 61131379583 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 07 | Connection piece in current distributor | 1 | 61131373977 | $0.56 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fuse box holder | 1 | 09/1986 | 61131381528 | $2.57 | ENDED | Shop at ECS Tuning | |||
| 09 | Fuse box | 1 | 61131373433 | $16.10 | ENDED | Shop at ECS Tuning | ||||
| 10 | Fillister head screw | M5X12-ZN | 2 | 07119907627 | $0.43 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
